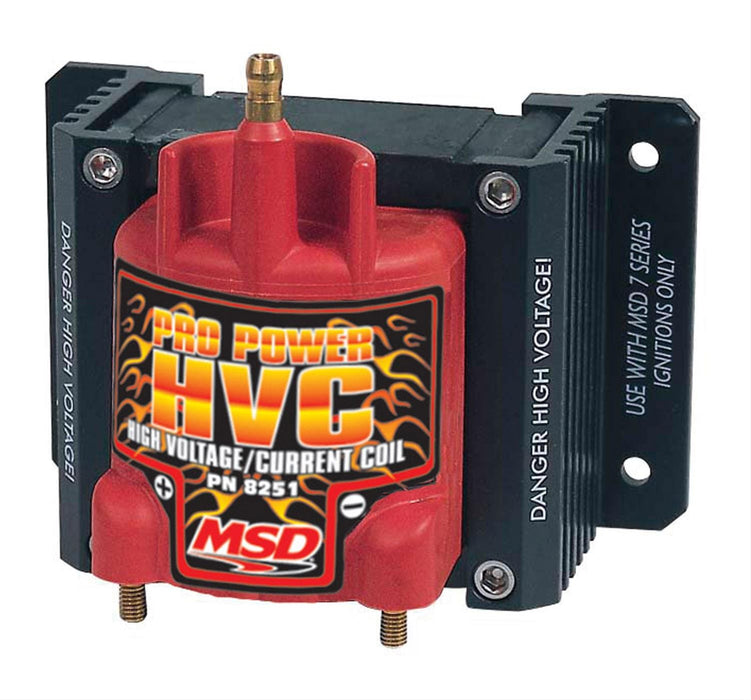

MSD Pro Power HVC Coils 8251
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8251
Part Type: Ignition Coils
Product Line: MSD Pro Power HVC Coils
Automotive Fittings Part Number: MSD-8251
UPC: 085132082513
Coil Style: Remote mount
Primary Resistance: 0.040 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 85:1
Secondary Resistance: 86.00K ohms
Inductance: 1.00 mH
Peak Current: 1.1 amps
Spark Duration: 150 uS
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 5.000 in.
Length (in.): 5.000 in.
Width (in.): 5.000 in.
Quantity: Sold individually.
Notes: For use with MSD 7, 8, or 10 Plus ignition systems only.
Description:
MSD HVC coils are designed for racing applications using an MSD 7, 8, or 10 series ignition. Due to their unique design, the Pro Power HVC coils are perfect for long duration racing events or on the street. A spark plug-style terminal is used to grip the secondary wire, and a Weathertight connector is supplied for a positive connection.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
