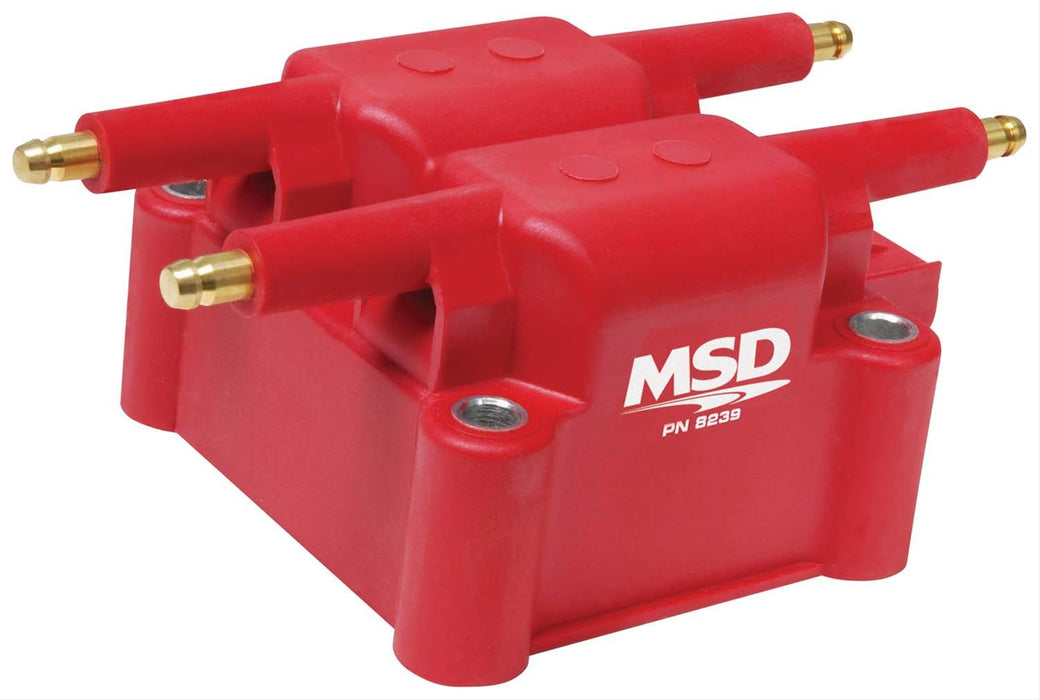

MSD Sport Compact Replacement Coils 8239
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8239
Part Type: Ignition Coils
Product Line: MSD Sport Compact Replacement Coils
Automotive Fittings Part Number: MSD-8239
UPC: 085132082391
Coil Style: Coil pack
Primary Resistance: 0.051 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 36,000 V
Turns Ratio: 77:1
Secondary Resistance: 12.00K ohms
Inductance: 7.0 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 2.385 in.
Length (in.): 3.765 in.
Width (in.): 5.695 in.
Quantity: Sold individually.
Notes: For DIS ignitions with square terminals in the coil connector. MSD-8229 is required on coils with round terminals in the coil connector.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
Description:
MSD sport compact coils are direct bolt-in replacements that intensify the spark output of your ignition, helping your air/fuel intake charge burn more completely. The results are smooth idle and improved mid-range power. Installation is a snap--the coils connect right to your factory wiring.
