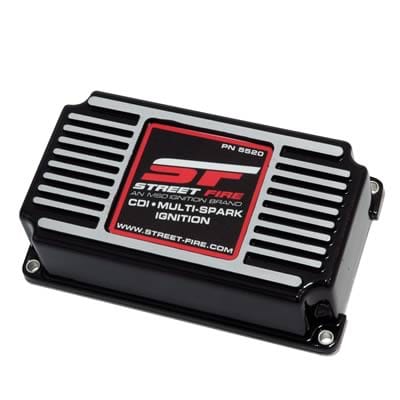

MSD Street Fire CD Ignitions 5520
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 5520
Part Type: Ignition Boxes
Product Line: MSD Street Fire CD Ignitions
Automotive Fittings Part Number: MSD-5520
UPC: 085132055203
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 435 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 95 mJ
Minimum Operating Voltage: 10 V
Maximum Operating Voltage: 18 V
Length (in.): 6.000 in.
Height (in.): 1.750 in.
Width (in.): 3.500 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
CARB EO Number(s): D-40-43
Emissions: California EO Approved
Description:
MSD Street Fire CD ignitions are perfect for budget-minded enthusiasts. Street Fire CD ignitions offer capacitive discharge technology that fires a series of multiple sparks for 20 degrees of crankshaft rotation when the engine is running under 3,000 rpm. This ensures complete combustion and produces great throttle response with a smooth idle. MSD's Street Fire CD ignitions are built within a durable cast aluminum housing and easily connects to points, amplifiers, and magnetic pickup distributors. There's even an adjustable rev limiter (100 rpm increments) for overrev protection!
