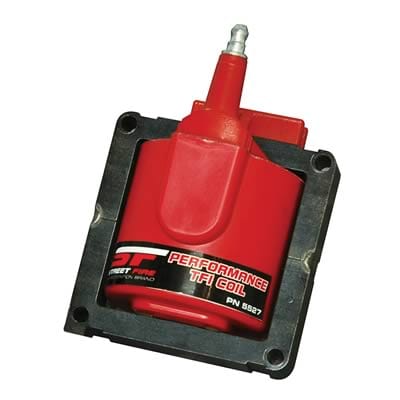

MSD Street Fire Coils 5527
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 5527
Part Type: Ignition Coils
Product Line: MSD Street Fire Coils
Automotive Fittings Part Number: MSD-5527
UPC: 085132055272
Coil Style: Remote mount
Primary Resistance: 0.400 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 40,000 V
Turns Ratio: 100:1
Secondary Resistance: 3.60K ohms
Inductance: 5.20 mH
Peak Current: 200 mA
Spark Duration: 2.5 mS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Description:
MSD Street Fire coils will improve the performance of your late model GM or Ford vehicle. The E-core dual connector and TFI coils feature epoxy-filled construction and maximum output voltage. They mount directly in place of the factory coil and accept the factory connectors for an easy installation.
