MSD Super HEI Kits 85001
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 85001
Part Type: Ignition Box and Coil Kits
Product Line: MSD Super HEI Kits
Automotive Fittings Part Number: MSD-85001
UPC: 085132850013
Circuitry: Digital
Rev Limiter: Yes
Ignition Box Output: Capacitive discharge
Timing Retard: None
CD Voltage Output to Coil: 520-540 V
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 15 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 135-145 mJ
Length (in.): 8.000 in.
Height (in.): 2.250 in.
Width (in.): 4.000 in.
Ignition Box Color: Red
Coil Included: Yes
Coil Style: Remote mount
Coil Internal Construction: Epoxy
Maximum Voltage: 40,000 V
Mounting Bracket Included: No
Coil Wire Included: Yes
Coil Shape: Square
Coil Color: Red
Quantity: Sold as a kit.

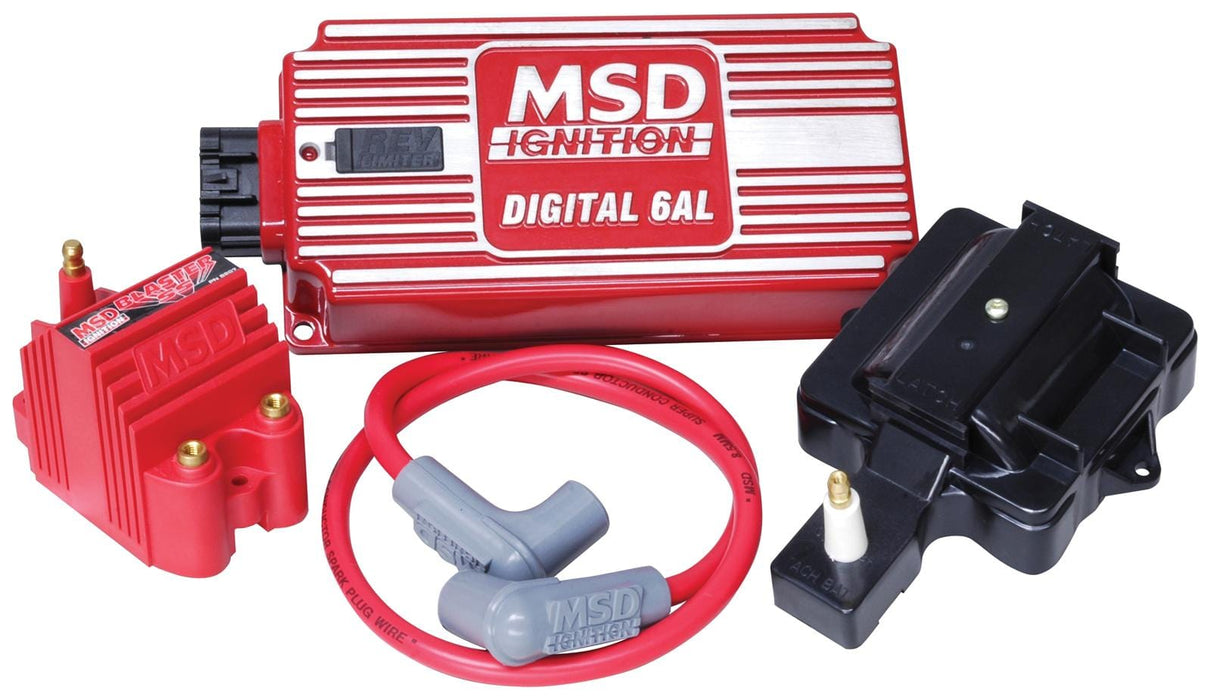

Notes: Kit includes MSD digital 6AL ignition, Blaster SS coil, coil wire, and HEI dust cover.
Description:
MSD Super HEI kits solve the common problem of power loss and a lack of response above 4,500 rpm. Both kits allow you to remove or bypass the low-powered HEI module and coil and replace them with an MSD 6A or 6AL ignition control and Blaster 2 high output coil. The results are more power, an increased rpm range, easier starting, and better mileage and performance. The Super HEI conversion fits all GM V8 engines with the GM HEI internal coil distributor. The complete Super HEI kits include an MSD 6A ignition, Blaster 2 coil, coil wire, HEI dust cover, and coil bracket. The HEI II kits are identical to the standard kits, except that they come with a 6AL ignition. The 6AL has Soft Touch Rev Control to protect your engine from overrevving.
