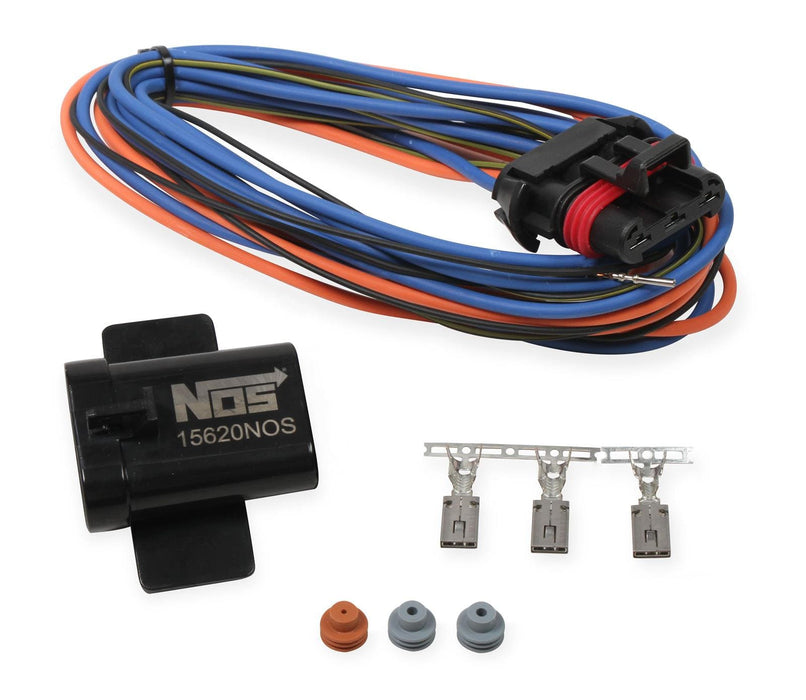

NOS Solid State Relays 15620NOS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 15620NOS
Part Type: Relays
Product Line: NOS Solid State Relays
Automotive Fittings Part Number: NOS-15620NOS
UPC: 090127006443
Amperage Rating: 40 amps
Volts: 5-20 V
Pole: Single
Terminal Type: Female connector
Wiring Harness Included: Yes
Quantity: Sold individually.
Notes: Relay includes a 24 in. pigtail.
Description:
NOS solid-state relays address the need for reliable, rugged, and affordable control of various electrical equipment on your race car. Originally designed to control the high-current switching loads of nitrous solenoids, these relays can also be used to control other high-current devices—such as electric water pumps, trans-brakes, and line locks. NOS relays feature an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. The solid-state relays can also be Pulse Width Modulated (PWM) with no minimum-duty cycle at frequencies up to 1000hz.
NOS solid state relays feature:
* 5-20 V DC operation
* Rugged solid-state circuitry
* Easy 3-wire connection
* Included terminated pigtail
* Included extra contacts for build-your-own wiring
* Ultra-fast activation, under 16 microseconds
* Pulse Width Modulation (PWM) compatible
* PWM 0-100 percent
* Up to 1000hz frequency
* Vibration-resistant
* Maximum continuous current = 40 amps
* Maximum switching current = 20 amps
