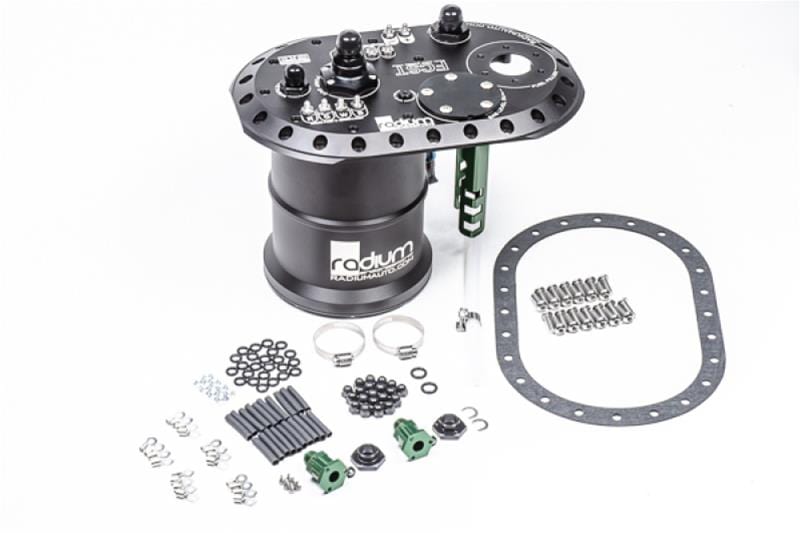

Radium Engineering Fuel Cell Surge Tanks 20-0693-00
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 20-0693-00
Part Type: Surge Tanks
Product Line: Radium Engineering Fuel Cell Surge Tanks
Automotive Fittings Part Number: RDM-20-0693-00
Fuel Pump Included: No
Capacity: 2 liters
Outlet Attachment: Female O-ring
Fuel Pump Outlet Size: -10 AN O-ring
Outlet Quantity: 1
Sending Unit Included: No
Gasket Included: Yes
Fuel Pressure Regulator Included: No
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Wiring Harness Included: No
Quantity: Sold individually.
Description:
Radium Engineering offers fuel cell surge tanks in a variety of configurations—with (or without) one, two, or three fuel pumps included. The fuel cell surge tank is a drop-in fuel pump system for Radium Engineering's popular fuel cells or any cell that uses the industry standard 6x10 24-bolt fill plate bolt pattern. The tank is designed to protect EFI vehicles that experience fuel starvation. It is NOT a glorified trap door box with baffles. It features a true dual-chamber fuel tank utilizing a single lift pump and up to three surge tank pumps all packaged inside the fuel cell. This provides all the benefits of a traditional external fuel surge tank without safety concerns and plumbing complexity.
Additional features include:
* Merged single 10 AN ORB female threaded outlet. All pumps use check valves that prevent back-flow for multi-pump applications
* One-way fill valve located on the bottom of the canister that allows fuel in, but not out, keeping the surge tank full
* Multiple fuel pump options, including gerotor, turbine, and brushless DC motor pumps
* Hermetically sealed high-current stainless steel electrical studs capable of handling all pumps
* Simplified servicing features, eliminating nylon sealing washers and fuel cell retaining brackets
* Full CNC aluminum construction with anodized surfacing for superior corrosion resistance
* Fuel compatibility: leaded and unleaded gasoline, methanol, ethanol, E85, etc.
* Dynamic safety vent valve with rollover protection and fuel fill shut-off
