Manufacturer's Part Number: 20-0847-297
Part Type: Gauge Sending Units
Product Line: Radium Engineering Fuel Level Sending Units
Automotive Fittings Part Number: RDM-20-0847-297
Gauge Type: Fuel level
Sending Unit: Electrical
Sender Ohm Range: 0 ohms empty, 90 ohms full
Fuel Level Sending Unit Style: Tube
Thread Adapter Fittings Included: No
Quantity: Sold individually.
Notes: Sender measures 11.700 in. long. Fits standard 5 bolt sending unit flanges.
Description:
Radium Engineering fuel level sending units feature full stainless steel sealed construction with magnetic float. They are easy to install using the supplied hardware and Deutsch connectors (gauge not included). Units are offered in models for compatibility with Radium 6-gallon, 10-gallon, and 15-gallon fuel cell surge tanks. Order the model for your application.
Features:
* Suitable for use with gasoline, diesel, water, and all alcohol-based fuels including methanol, ethanol, E85, etc.
* All level senders are 0 ohms empty to 90 ohms full, common with many OEM gauges (Radium engineering does not sell fuel level gauges)
* Fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank (sold separately)
* To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move

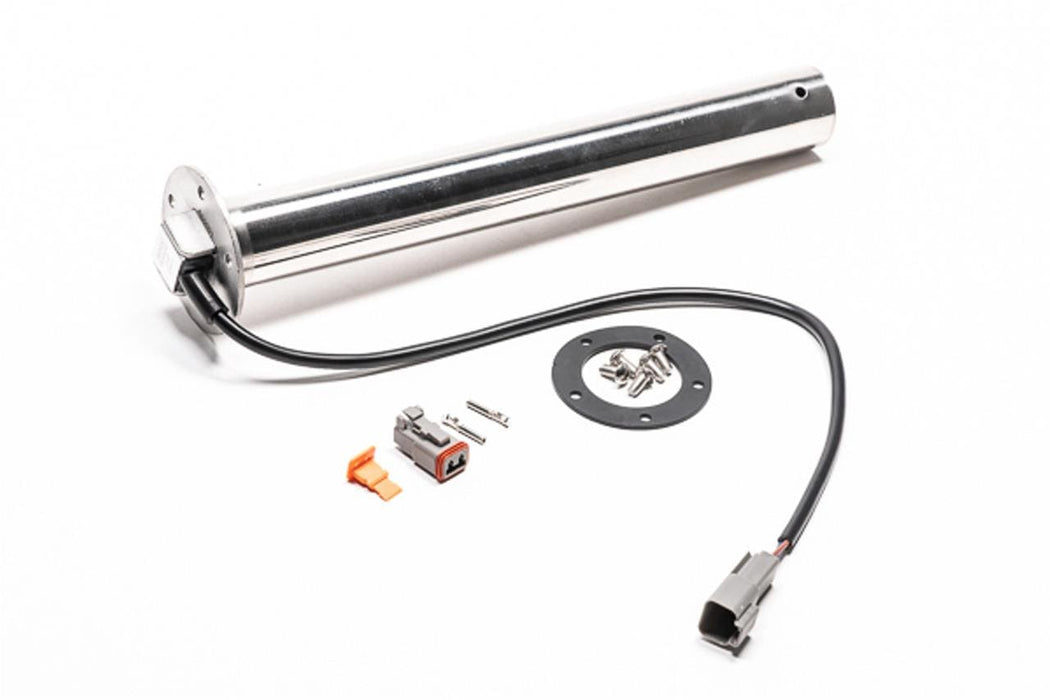

Each level sender includes the following:
* Level Sensing Probe
* SAE 5-bolt gasket
* Stainless bolts
* Deutsch DT 2P connector
* Deutsch DT sockets
