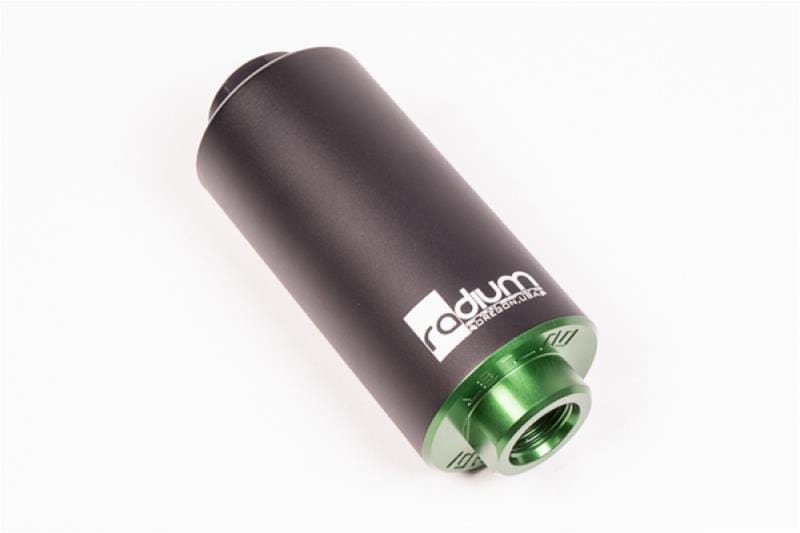

Radium Engineering High Flow Fuel Filters 20-0220-04
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 20-0220-04
Part Type: Fuel Filters
Product Line: Radium Engineering High Flow Fuel Filters
Automotive Fittings Part Number: RDM-20-0220-04
Fuel Filter Style: Inline
Inlet Quantity: 1
Fuel Filter Inlet Size: -10 AN O-ring
Inlet Attachment: Female threads
Outlet Quantity: 1
Fuel Filter Outlet Size: -10 AN O-ring
Outlet Attachment: Female threads
Filter Element Included: Yes
Smallest Particle Filtered: 100 microns
Filter Element Material: Stainless steel mesh
Filter Housing Material: Aluminum
Filter Housing Color: Black
Overall Length (in.): 5.70 in.
Outside Diameter (in.): 2.360
Mounting Bracket Included: No
Fittings Included: No
Clamps Included: No
Maximum Fuel Pressure (psi): 150
Quantity: Sold individually.
Description:
Radium Engineering high-flow fuel filters are a perfect match for any application needing high flow and industry-leading filtration. Radium uses one of the largest filtration elements in the industry. This translates into a long service life and minimum flow loss, making the filters ideal for high-horsepower vehicles. The filters can be completely disassembled for servicing and replacement elements are available. Stainless steel mesh elements can be cleaned and re-used, while the Microglass element must be replaced at the end of its service life. The filters are designed for EFI fuel pressures and can be safely used on a high-pressure fuel feed line.
The fuel filters are constructed with a 3-piece body that's CNC-machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. The end caps are sealed to the body with FKM O-rings. Both removable end caps feature large -10 AN ORB female threaded ports for high flow plumbing. Radium offers a large selection of adapter fittings to connect up to a variety of fuel hose types and sizes. These fuel filters come preassembled with the chosen filter element—and are compatible with all fuel types, including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. Choose the element material and micron filtration options preferred.
