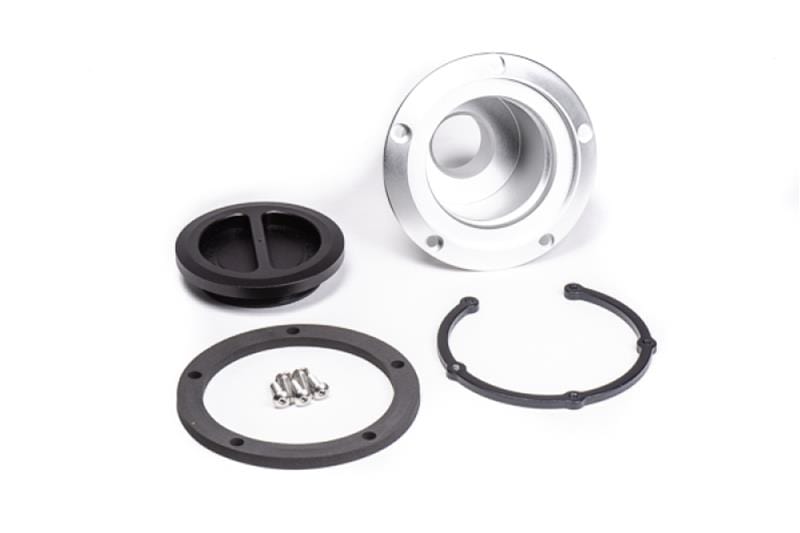

Radium Engineering Remote Mount Fuel Fillers 20-0505-V
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 20-0505-V
Part Type: Fuel Tank Filler Necks
Product Line: Radium Engineering Remote Mount Fuel Fillers
Automotive Fittings Part Number: RDM-20-0505-V
Fuel Tank Filler Neck Material: Aluminum
Fuel Tank Filler Neck Color: Natural
Fuel Tank Filler Neck Cap Included: Yes
Quantity: Sold as a kit.
Notes: This fill neck has a machine hose barb for 1.5 in. hose.
Description:
Because vehicles have different priorities when it comes to refueling, Radium offers different solutions to suit most needs. They offer their body-mount remote fuel fillers in a standard fill (cap) or dry break (no cap to unscrew) for those needing to refill quickly in a competitive environment.
Radium Engineering remote mount fuel fillers secure to your vehicle's body, are vented, offer roll-over protection incase vehicle becomes inverted, and have a machined hose barb connection for 1.5 in. filler hose. Both fillers offer the same outer diameter of 4.75 in., use 4.25 in. PCD for the included stainless steel M5 bolts, and require a 3.03 in. (77mm) hole to be fabricated. They also include an ozone/flame-resistant gasket and an anodized aluminum nut ring.
The components, materials, and seals of the dry break quick-fill filler are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.) and the receptacle can be unscrewed and replaced with cap (sold separately) for standard filling. The standard fill filler can be upgraded to a dry break with a Radium kit (sold separately). Choose your preferred remote mount fuel filler option.
