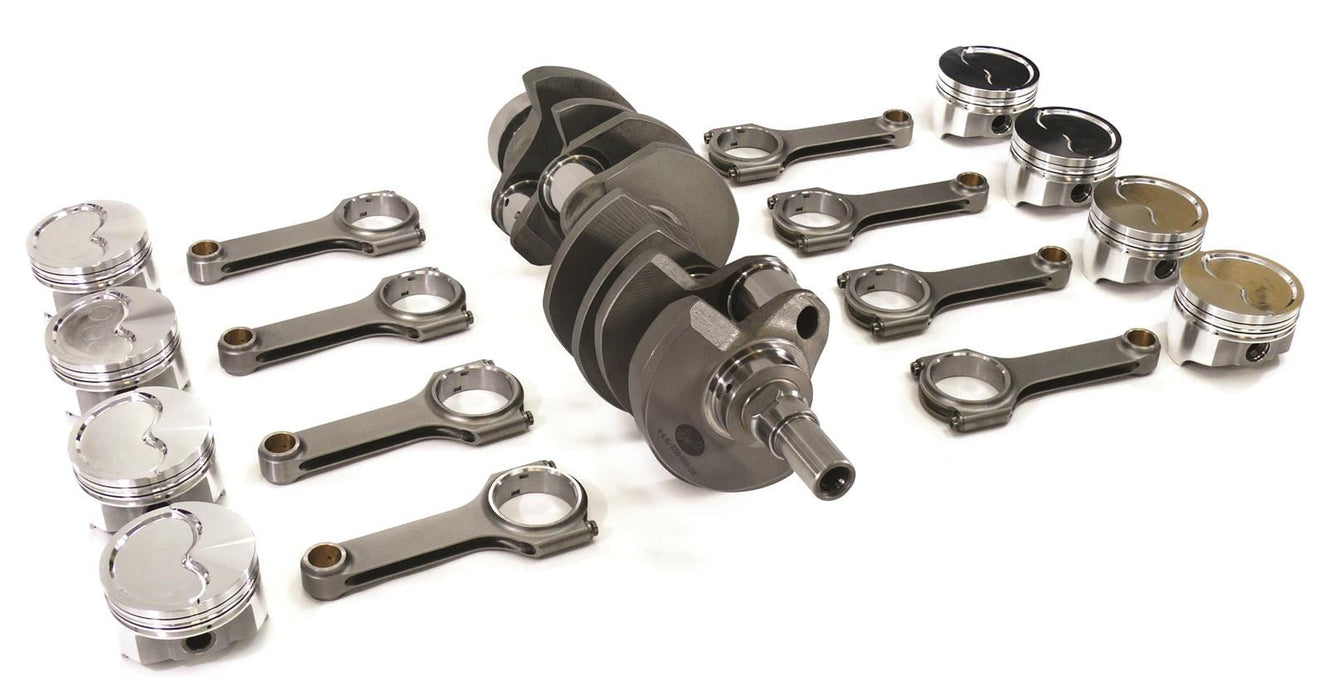

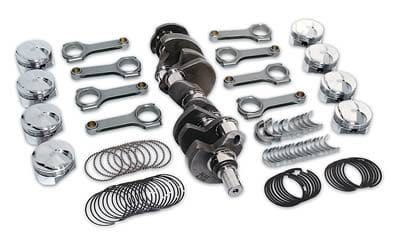

Scat Modern Muscle Engine Rotating Assemblies 1-47804
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 1-47804
Part Type: Engine Rotating Kits
Product Line: Scat Modern Muscle Engine Rotating Assemblies
Automotive Fittings Part Number: SCA-1-47804
UPC: 846091025092
Actual Engine Displacement: 4.9L/297
Rear Main Seal Style: 1-piece
Bore (in.): 3.552 in.
Bore (mm): 90.221mm
Engine Stroke (in.): 3.750 in.
Balanced: No
Piston Material: Forged aluminum
Piston Style: Dish, with two valve reliefs
Harmonic Balancer Included: No
Flexplate Included: No
Flywheel Included: No
Pistons Included: Yes
Piston Head Volume (cc): +9.75cc
Wrist Pin Style: Floating
Piston Rings Included: Yes
Piston Ring Facing Material: Plasmamoly
Piston and Ring Oversize (in.): 0.030 in.
Crankshaft Included: Yes
Crankshaft Material: Forged 4340 steel
Engine Balance: Internal
Connecting Rods Included: Yes
Connecting Rod Length Center to Center (in.): 5.585 in.
Connecting Rod Material: Forged 4340 steel
Connecting Rod Beam Style: H-beam
Rod Bearings Included: Yes
Rod Bearing Undersize (in.): Stock
Rod Bearing Undersize (mm): Stock
Main Bearings Included: Yes
Main Bearing Undersize (in.): Stock
Main Bearing Undersize (mm): Stock
Cam Bearings Included: No
Gaskets Included: No
Oil Pump Included: No
Camshaft Included: No
Lifters Included: No
Timing Chain and Gears Included: No
Plastigage Included: No
Assembly Lubricant Included: No
Quantity: Sold as a kit.
Notes: Designed for use with 3V cylinder heads only.
Description:
Scat Modern Muscle engine rotating assemblies are available with high-quality Scat forged 4340 crankshafts and I-beam or H-beam connecting rods with 7/16 in. cap screw bolts. For maximum power and reliability, Scat adds rod and main bearings from King, Federal Mogul, or Clevite 77, depending upon the application, and pistons and piston rings made by such well-known manufacturers as SRP/JE, Ross, KB, Mahle, Diamond, and Probe.
