Snow Performance Stage 2.5 N54/N55 Direct Port Water/Methanol Injection Systems SNO-2169-BRD
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: SNO-2169-BRD
Part Type: Water/Methanol Injection Systems
Product Line: Snow Performance Stage 2.5 N54/N55 Direct Port Water/Methanol Injection Systems
Automotive Fittings Part Number: SNO-2169-BRD
UPC: 653374978026
Water Injection Pump Included: Yes
Wiring Harness Included: Yes
Boost Pressure Reference Switch Included: Yes
Reservoir Included: Yes
Reservoir Volume: 2 1/2 gallon
Quantity: Sold as a kit.
Notes: Direct fit for N54 engines. N55 engines will require some modification.
Description:
Snow Performance Stage 2.5 N54/N55 direct port water-methanol injection systems are engineered specifically for BMW models with N54/N55 engines. These systems can increase your pump gas octane by 25 points and makes more power efficiently with a cooler running engine! The Snow Performance Stage 2.5 N54/N55 direct port systems come complete with custom water-methanol injection throttle body spacer plate, braided stainless line, and 4AN fittings, offering un-surpassed quality, reliability, performance and ease of the installation.
In addition, Snow Performance direct port injection plates are the easiest, and the best-way to mount the water-meth nozzles on BMW N54/N55 engines. Simply fit between the head and intake manifold and enjoy the placement of six Hyper-Sonic nozzles right where you need it!
Additional features and benefits include:
* The Stage 2 uses a progressive VC-50 controller that proportionally injects more or less according to boost pressure
* Start and full points are adjustable for engagement and delivery curve to match what the engine requires
* Proportionally injecting according to boost pressure gives an accurate delivery of water-methanol, and allows cooling and performance improvements over a wide range for improved drivability
* The VC-50 controller (52mm gauge) offers the functionality of a boost gauge and water-methanol controller--all in one!
* 7 color (Blue, White, Red, Yellow, Orange, Purple, Green) LED screen displays boost, percentage of injection, low level, secondary nozzle activation, prime button, and 2 fault codes, allowing you to tailor the controller to match your OEM gauges or mix and match up to two colors

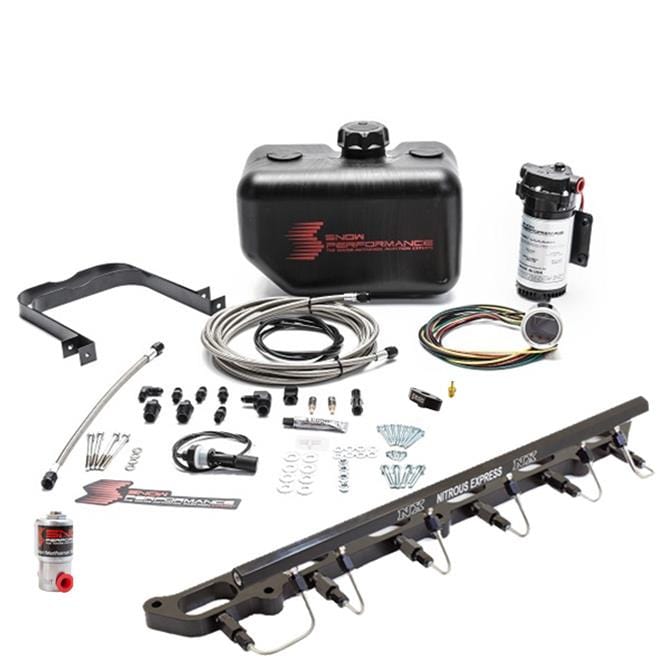

Snow Performance N54/N55 direct port kit includes:
* Direct Port Injection Plate
* OEM O-ring gaskets to seal between injection plate and head
* Required hardware for installation
* Hardlines plumbed to distribution rail
* Six No. 2 nozzles installed in plate
* High-flow water methanol solenoids
* N54/N55 engine specific boost tap
* Everything needed for installation
