Stromberg Big Bore 3x2 Fuel Lines 9146-BIG
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 9146-BIG
Part Type: Carburetor Feed Lines
Product Line: Stromberg Big Bore 3x2 Fuel Lines
Automotive Fittings Part Number: SBC-9146-BIG
UPC: 5060481532358
Inlet Quantity: 1
Inlet Attachment: Female threads
Fuel Line Inlet Size: 1/4 in. NPT
Outlet Quantity: 3
Outlet Attachment: Male threads
Fuel Line Outlet Size: 1/2-20 in. inverted flare
Fuel Line Type: Hard tube
Adjustable: No
Fuel Filter Included: No
Gauge Port: Yes
Gauge Port Size: 1/4 in. NPT
Fuel Pressure Gauge Included: No
Fuel Line Material: Stainless steel
Fuel Line Color: Natural
Quantity: Sold individually.
Description:

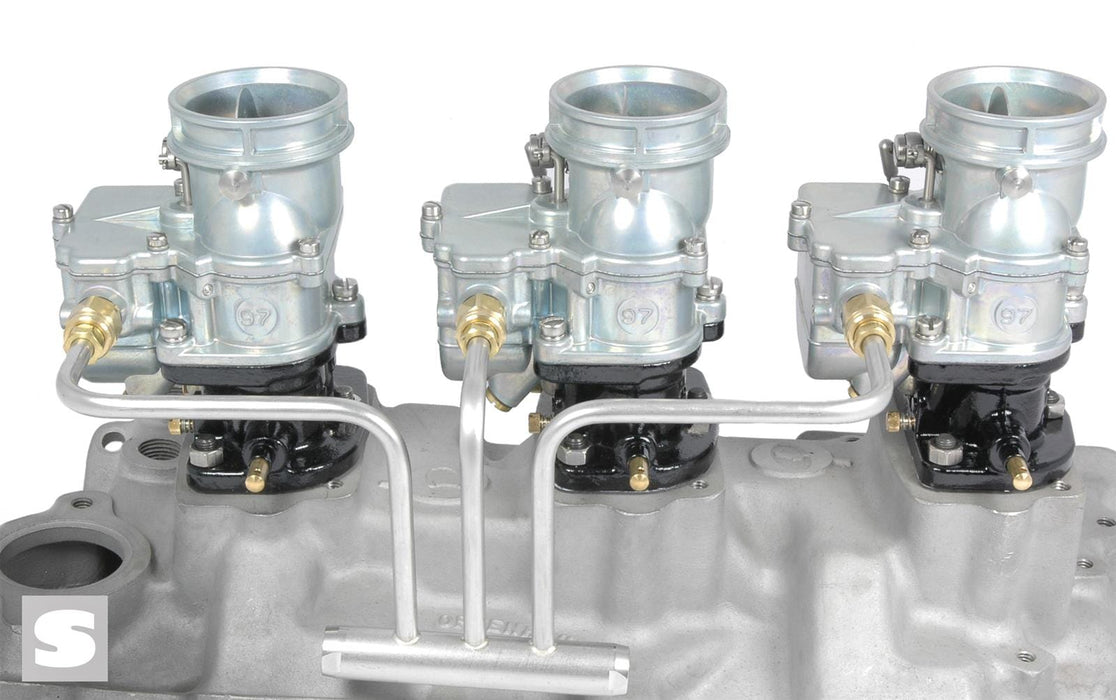

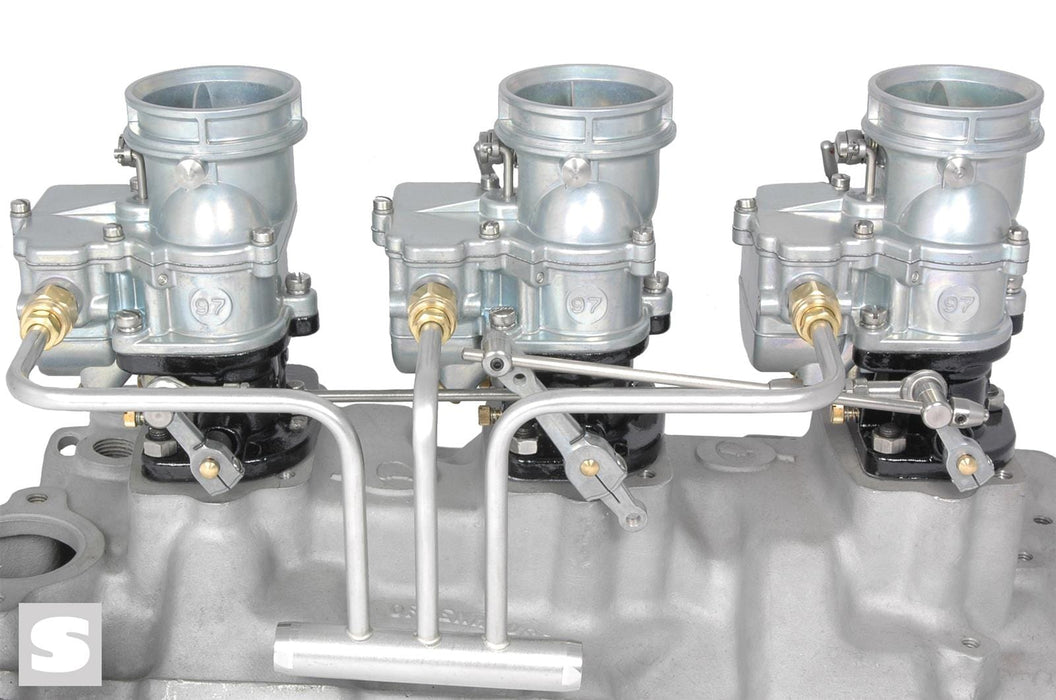

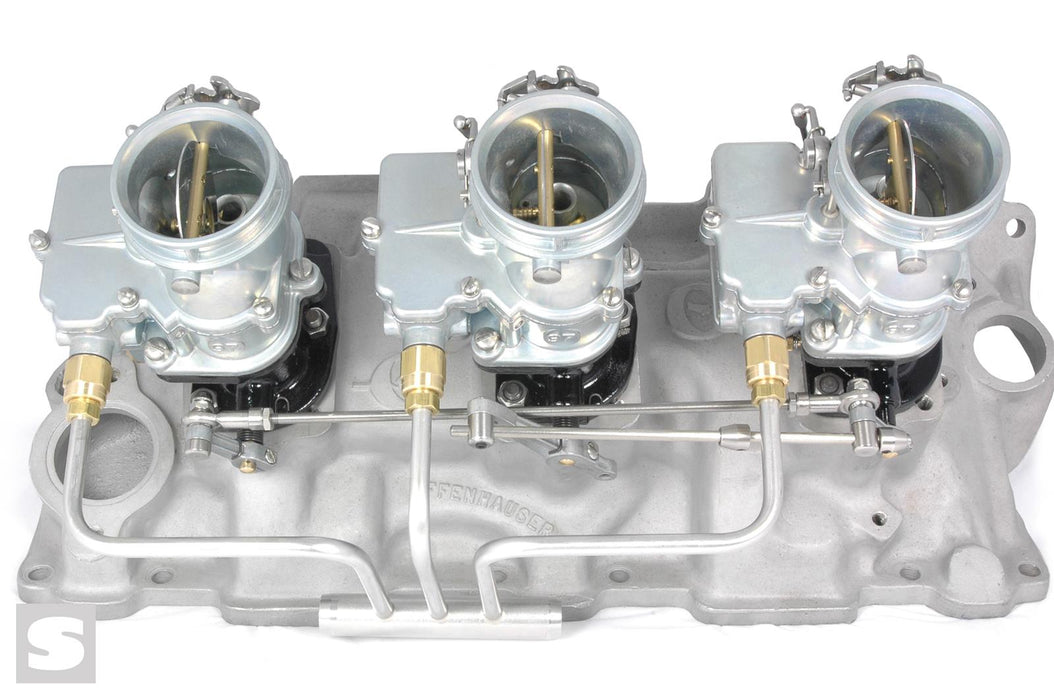

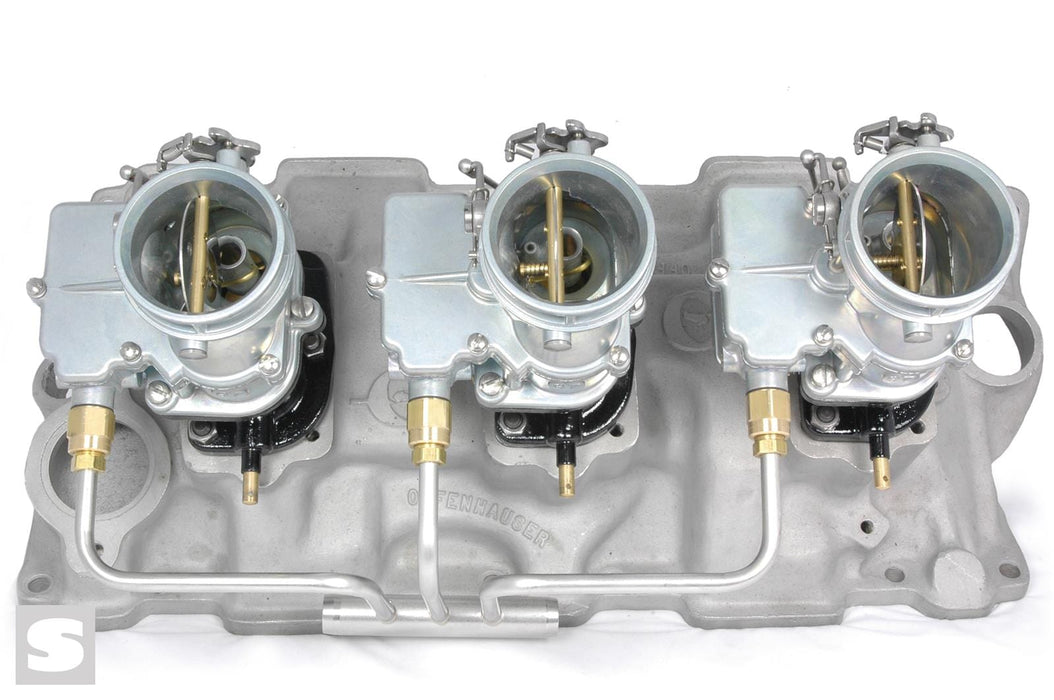

Stromberg Big Bore 3x2 fuel lines plumb your carburetors with clean, classic looks and simple installation. Their 3-into-1 fuel lines use CNC-bent 5/16 in. 304 stainless steel lines with leak-free "invisible" furnace-brazed joints. The fuel block sits down close to the manifold, matching the 4 degree Chevy intake angle to align visually with the valve covers. And then, for maximum versatility, the lines have 1/4 NPT threads at both ends with machined 11/16 in. AF flats—so fittings can be tightened safely without damaging the line. Carburetor spacing is set at 5 1/2 in., and the fuel lines are supplied ready to install with special Ford nut compression fittings. The lines are available natural or beautifully polished. Feed your fuel system with the performance and style of Stromberg Big Bore 3x2 fuel lines.
