Summit Racing™ Camshaft and Spring Kit Pro Packs 09-0012
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 09-0012
Part Type: Camshaft Kits
Product Line: Summit Racing™ Camshaft and Spring Kit Pro Packs
Automotive Fittings Part Number: CMB-09-0012
Cam Style: Hydraulic roller, OE roller
Basic Operating RPM Range: 1,900-5,600
Camshaft Use: Street/Strip
Intake Duration at 050 inch Lift: 227
Exhaust Duration at 050 inch Lift: 241
Duration at 050 inch Lift: 227 int./241 exh.
Advertised Intake Duration: 283
Advertised Exhaust Duration: 303
Advertised Duration: 283 int./303 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.513 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.498 in.
Valve Lift with Factory Rocker Arm Ratio: 0.513 int./0.498 exh.
Lobe Separation (degrees): 107
Camshaft Gear Attachment: 3-bolt
Grind Number: 283THR7
Computer-Controlled Compatible: No
Lifters Included: No
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in.): 1.055 in.
Retainers Included: Yes
Locks Included: No
Valve Stem Seals Included: No
Timing Chain and Gears Included: No
Assembly Lubricant Included: No
Pushrods Included: No
Rocker Arms Included: No
Gaskets Included: No
Valve Springs Required: No
Quantity: Sold as a kit.
Description:

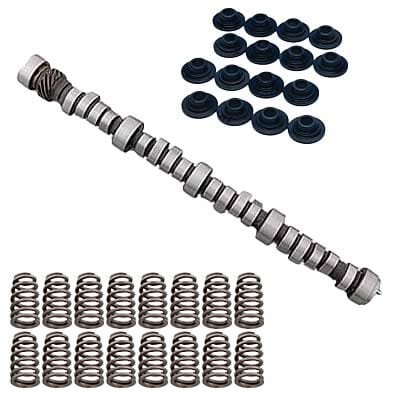

Summit Racing™ camshaft and spring kit Pro Packs have been put together to cut down on costs and save you precious time. They include a new camshaft, springs, retainers, and assembly lube. The Summit Racing™ camshaft and spring kit Pro Packs are available with a variety of different camshaft profiles, so you can choose which one is best for your engine combination.
