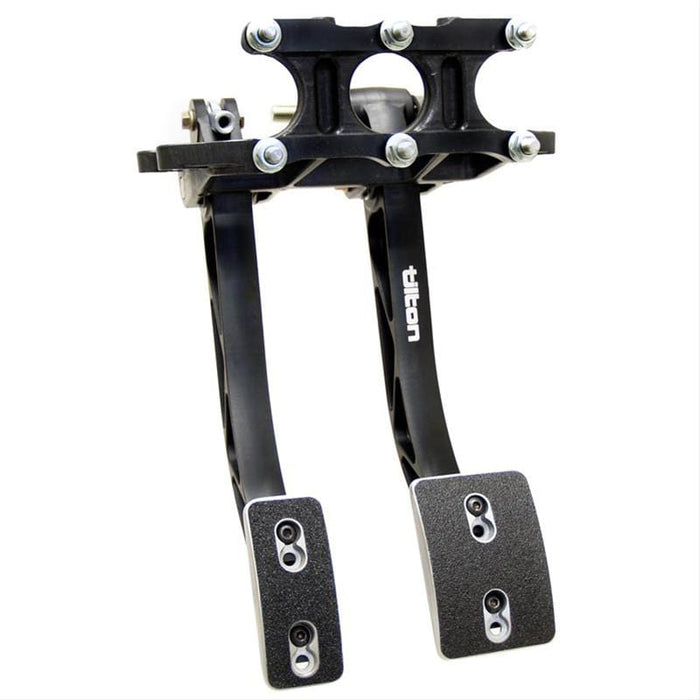

Tilton 600-Series Overhung-Mount Pedal Assemblies 72-608
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 72-608
Part Type: Pedal Assemblies
Product Line: Tilton 600-Series Overhung-Mount Pedal Assemblies
Automotive Fittings Part Number: TIL-72-608
Pedal Type: Brake/Clutch
Pedal Mounting Location: Underdash mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: Variable
Balance Bar Included: Yes
Master Cylinder Style: Triple
Quantity: Sold individually.
Notes: Adjustable pedal ratio, 5.0:1-6.2:1. 4.80 lbs. total weight.
Description:
Tilton 600-Series overhung-mount pedal assemblies are engineered for performance excellence. Fully optimized for strength, stiffness, and weight using FEA software, they feature a large-diameter traditional balance bar design, allowing front/rear brake adjustments and minimal flex for a more solid pedal feel/response. Plus, these overhung-mount pedal assemblies are available in multiple models, all featuring lightweight aluminum frames with guide ramps to reduce balance bar tipping for improved brake repeatability. Whether vying to be the best in road racing, drifting, drag racing, on the street, or off-road, Tilton 600-Series pedal assemblies will provide your competitive spirit with high performance to fit your budget.
Product features:
* Fabricated steel pedals with anti-slip surfaces (dependent on model chosen)
* Aluminum pedals with adjustable foot pads (dependent on model chosen)
* PTFE-coated aluminum clevises reduce friction
* Pedal pivots with wave washers
* Oil impregnated bronze bushings decrease stiction
* Adjustable clutch pedal stop (steel pedal model only)
