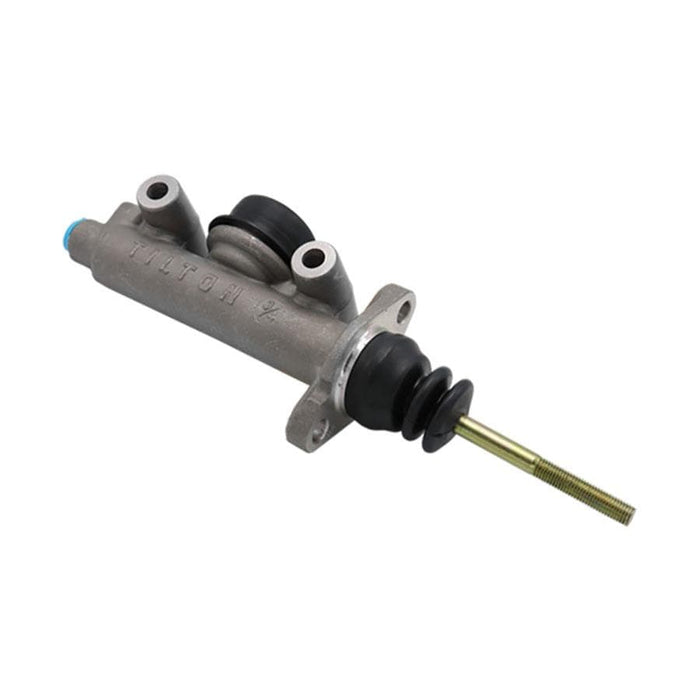

Tilton 74-Series Master Cylinders 74-700
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 74-700
Part Type: Master Cylinders
Product Line: Tilton 74-Series Master Cylinders
Automotive Fittings Part Number: TIL-74-700
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.700 in.
Power Brake Compatible: No
Outlet Quantity: 2
Outlet Size 1: -3 AN
Outlet Size 2: -3 AN
Master Cylinder Material: Aluminum
Master Cylinder Finish: Clearcoat
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: No
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Fits Tilton 600-Series pedal assemblies/balance bars.
Description:
Tilton 74-Series master cylinders have been continuously improved upon since their introduction way back in 1986. These aluminum brake cylinders are a trusted favorite of car builders and race teams, due to their reliability and value. The units are compatible with front, rear, disc, or drum brakes. Order the bore size needed for your application.
