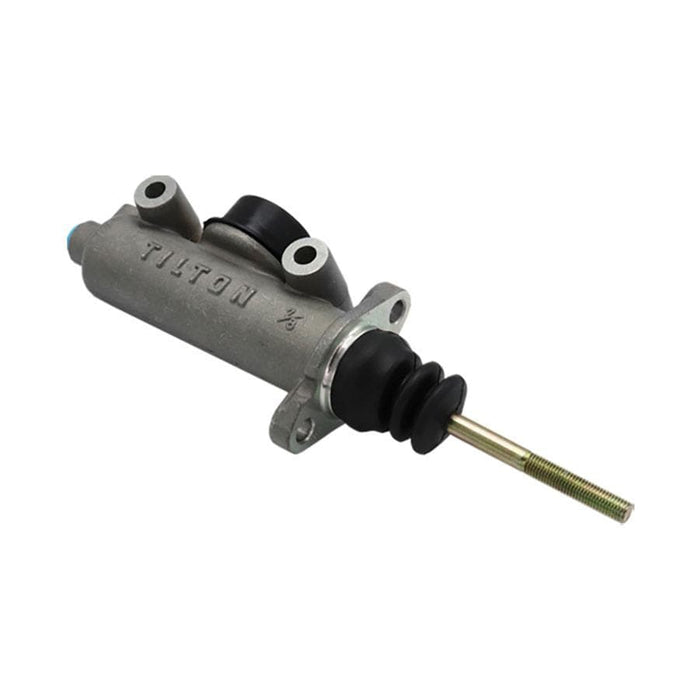

Tilton 74-Series Universal Master Cylinder Kits 74-625U
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 74-625U
Part Type: Master Cylinders
Product Line: Tilton 74-Series Universal Master Cylinder Kits
Automotive Fittings Part Number: TIL-74-625U
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.625 in.
Power Brake Compatible: No
Outlet Quantity: 2
Outlet Size 1: -3 AN
Outlet Size 2: -3 AN
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: Yes
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
Notes: Includes a 6.8 oz reservoir.
Description:

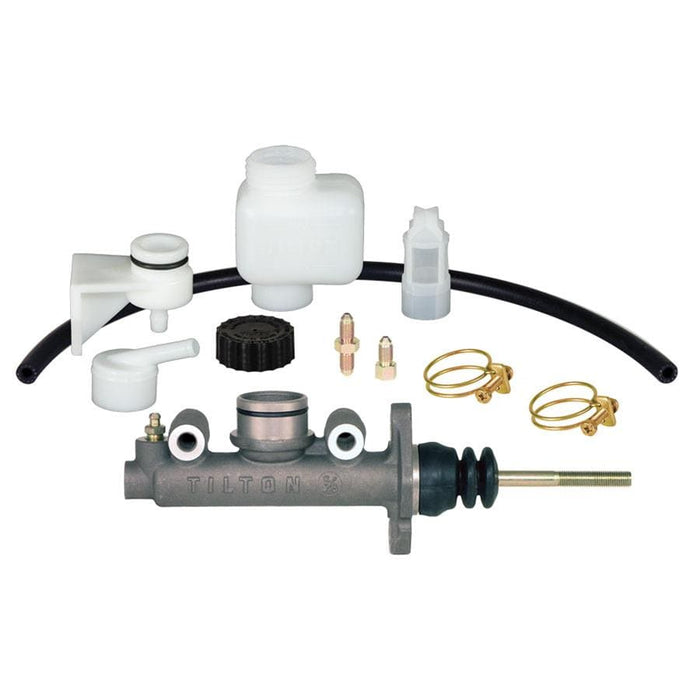

Tilton 74-Series universal master cylinder kits feature an aluminum cylinder, anodized for wear and corrosion resistance. Their universal mounting design offers flange, side, or both mounting options, and their caps are a screw-in type with seals and baffles. These kits include everything you need to get the job done--a master cylinder, reservoir, a remote reservoir mount kit, and fittings.
