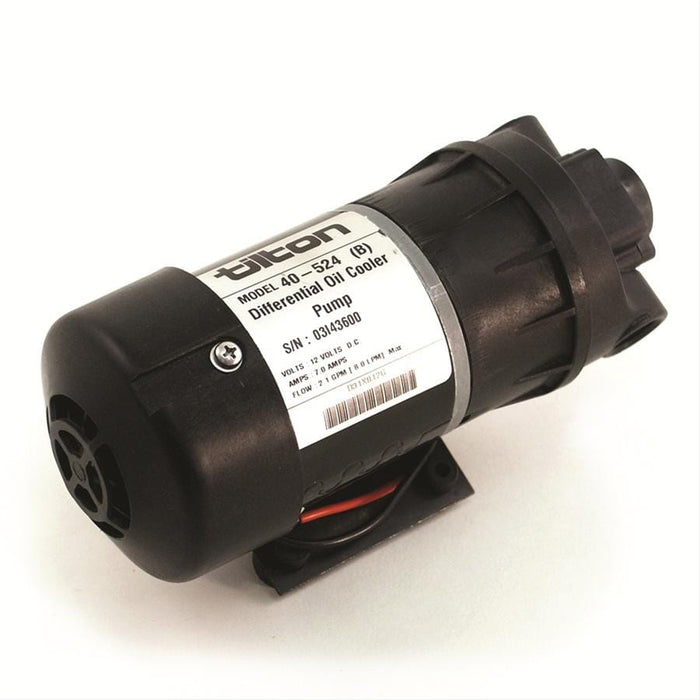

Tilton Transmission and/or Differential Oil Cooler Pumps 40-524
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 40-524
Part Type: Fluid Transfer Pumps
Product Line: Tilton Transmission and/or Differential Oil Cooler Pumps
Automotive Fittings Part Number: TIL-40-524
Fluid Transfer Pump Type: Electric
Flow Rate at 12 Volts: 1-2 GPM
Working Pressure (psi): 60
Temperature Range (degrees F): 0 to 265 degrees F
Power Supply: 12 V DC
Pump Material: Plastic
Quantity: Sold as a kit.
Notes: Designed for intermittent use. 3/8 inch NPT inlet and outlet size. Pump has Buna diaphragm.
Description:
The Tilton transmission and differential oil cooler pumps are ideal for pumping oil through oil coolers. They feature an internal bypass valve and are self-priming up to several feet above the source from which it draws. Tilton cooler pumps are a positive displacement type of pump, so their output is directly proportional to the motor speed. For example, if a lighter load increases the motor speed by 25 percent, then the flow rate increases by 25 percent as well. The Buna cooler pumps are designed for use with standard oils and coolants, while the Viton® models are designed for use with corrosive fluids such as alcohol. Intermittent duty pumps are designed for applications where the pump does not need to be used continuously, such as being turned on/off by the driver or a relay at established temperatures. Order the model for your application needs.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
