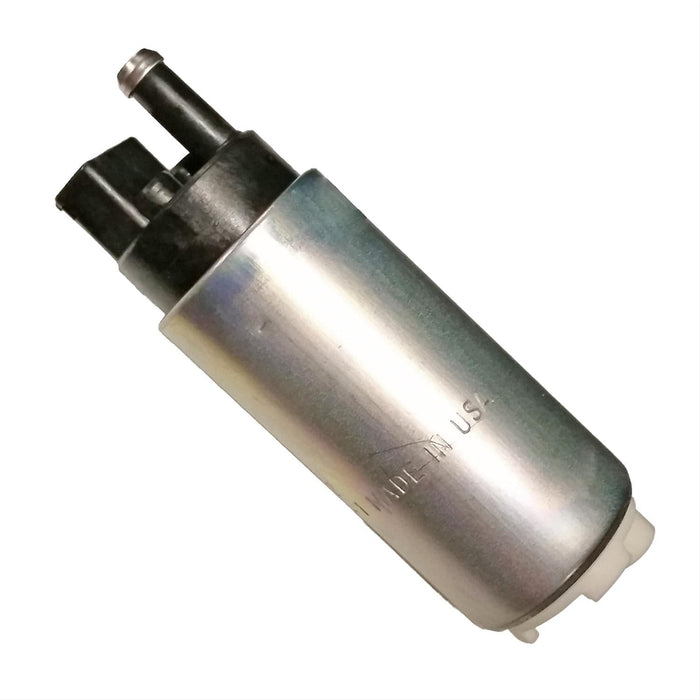

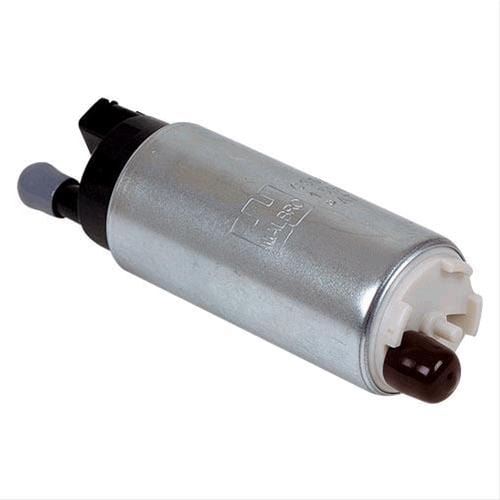

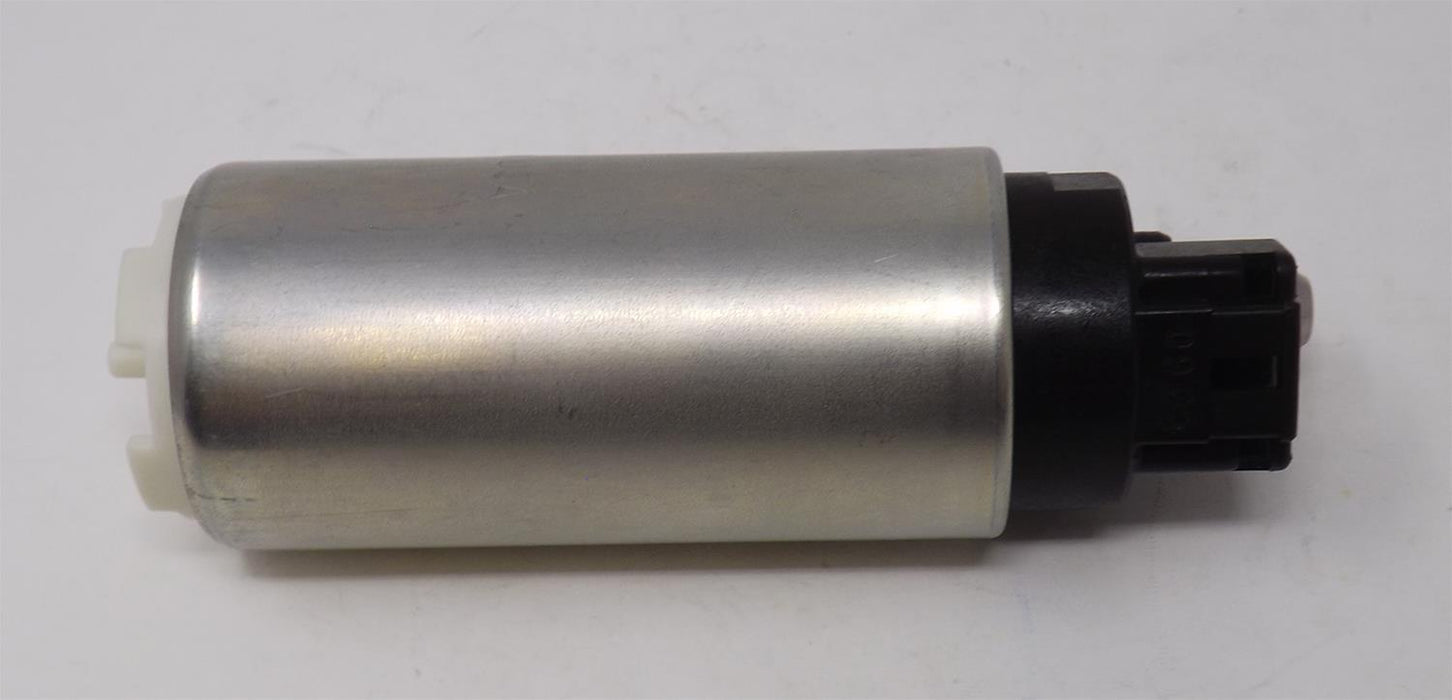

Walbro Electric In-Tank Fuel Pumps GCA3366-2
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: GCA3366-2
Part Type: Fuel Pumps
Product Line: Walbro Electric In-Tank Fuel Pumps
Automotive Fittings Part Number: VPN-GCA3366-2
UPC: 086235336626
Fuel Pump Type: Electric In-tank
Flow Rate: 67 gph/255 lph
Fuel Pressure (psi): 60 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: Stock
Inlet Quantity: 1
Inlet Attachment: Stock
Fuel Pump Outlet Size: Stock
Outlet Quantity: 1
Outlet Attachment: Stock
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Walbro electric in-tank fuel pumps are available in a variety of flow ratings, including pumps that flow significantly more fuel at higher pressure. The outside dimensions, however, of many pumps are compact enough to fit existing hanger assemblies, without modification. All pumping components have been validated to OEM specifications for use in E85/flex fuel applications.
Most Walbro in-tank fuel pumps utilize a proven gerotor design. Some high-performance models, including those designed for engines with more than 750 hp, feature a dual-channel turbine design for maximum efficiency in high-pressure and high-temperature applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that's higher than conventional pumps. Some pumps require modifications to system wiring, fuel lines, and the fuel module, and should be professionally installed.

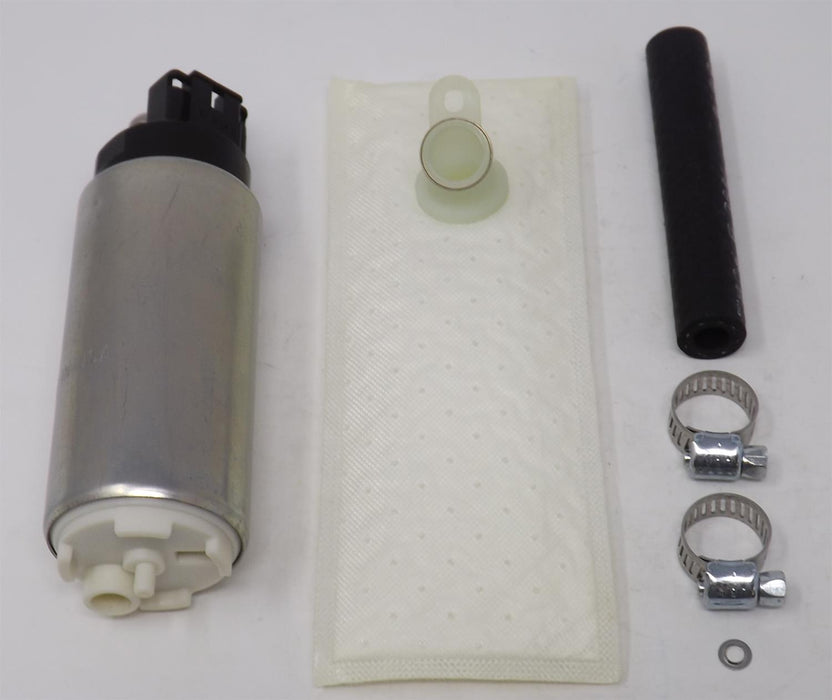

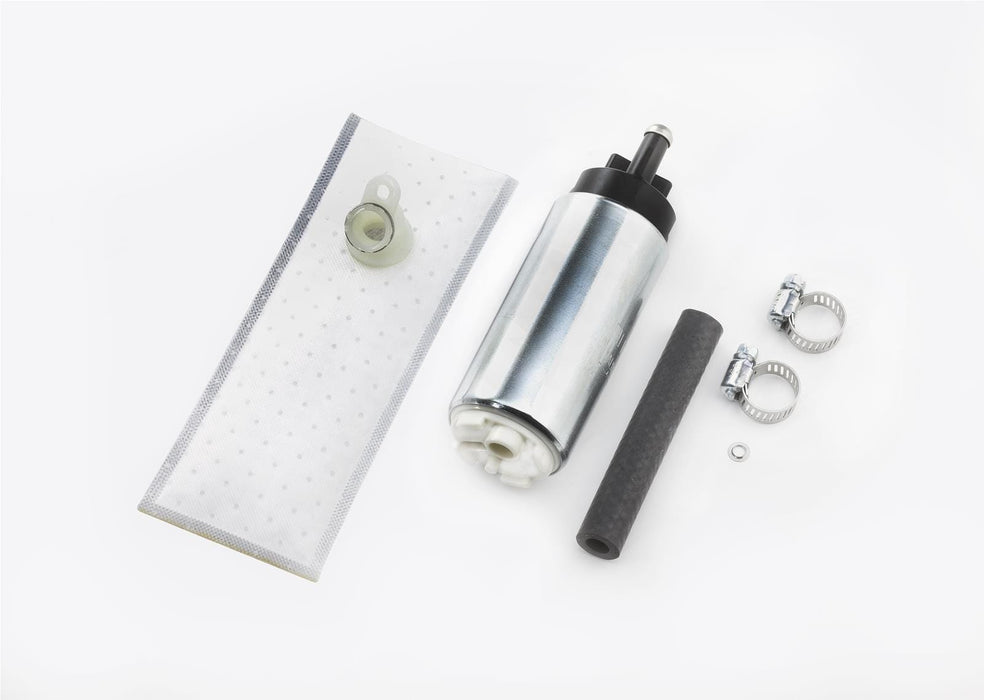

Installation kits including a fuel strainer, fuel hose, harness pigtail, clamps, and wire connectors are sold separately.
