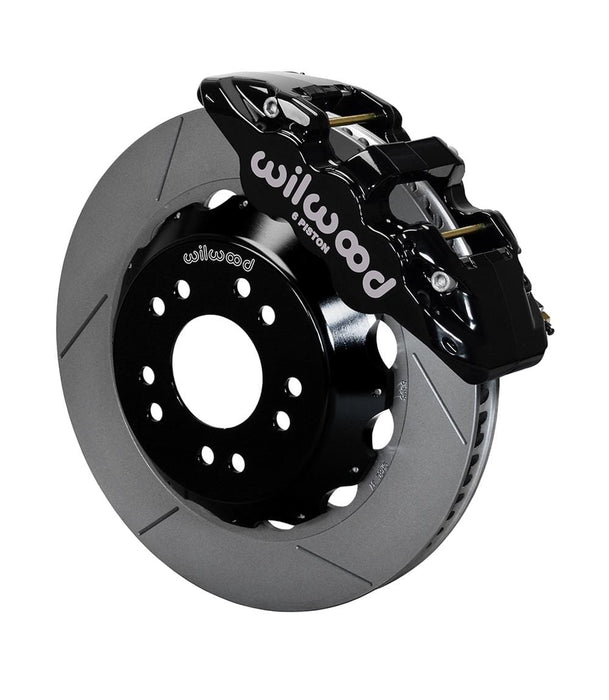

Wilwood AERO6 Big Brake Front Brake Kits 140-15305
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-15305
Part Type: Disc Brake Kits
Product Line: Wilwood AERO6 Big Brake Front Brake Kits
Automotive Fittings Part Number: WIL-140-15305
UPC: 889545076431
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.00 in./355.60mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 120.65mm/5 x 127.00mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.

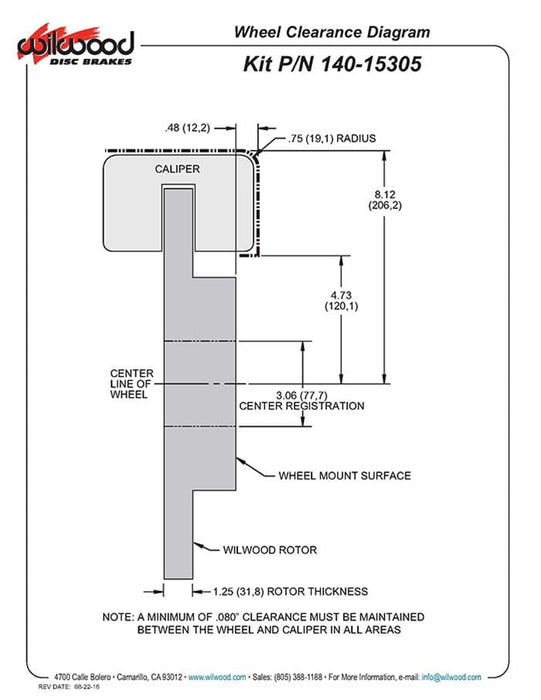

Offset (in.): 0.410 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: This kit is designed for use on Chevy and GMC vehicles with Wilwood C10 Aluminum Modular Pro drop spindles and will not fit OE-style spindles. The listed offset is in reference to stock 1963-70 setups and will be -0.06 in. for 1971-87 year models. Please see the Application section for details and the Instructions Sheet for replacement parts and associated components.
Description:

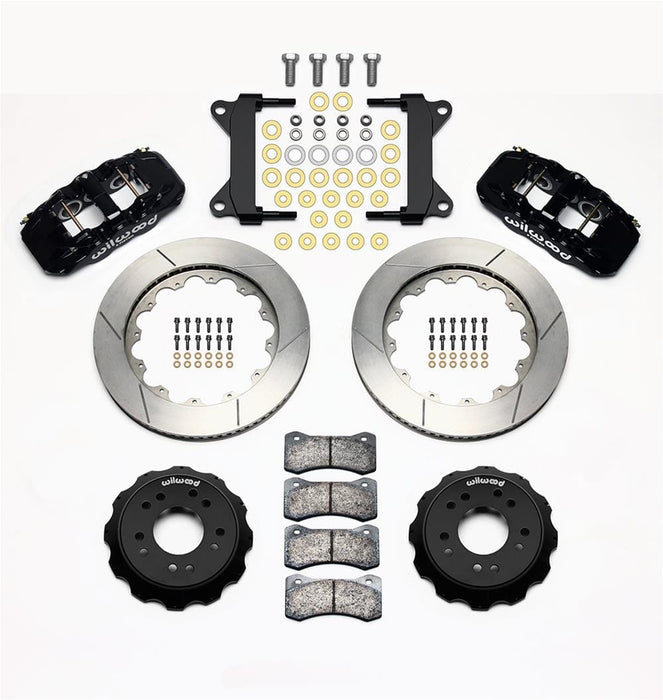

Wilwood AERO6 Big Brake front brake kits enhance the performance and looks of your extreme vehicles. Show cars and dual-purpose street and track cars—as well as trucks for towing and off-road SUVs—will benefit from these kits. Wilwood Big Brake kits feature AERO6 forged calipers that deliver heavy-duty stopping power in your choice of powdercoated red or black. Premium-grade rotors, high performance pads, and precision-machined hats complete the list of these matched component kits. Order the model designed for fitment on your vehicle, then bolt on the optimum performance and looks of Wilwood AERO6 Big Brake kits.
