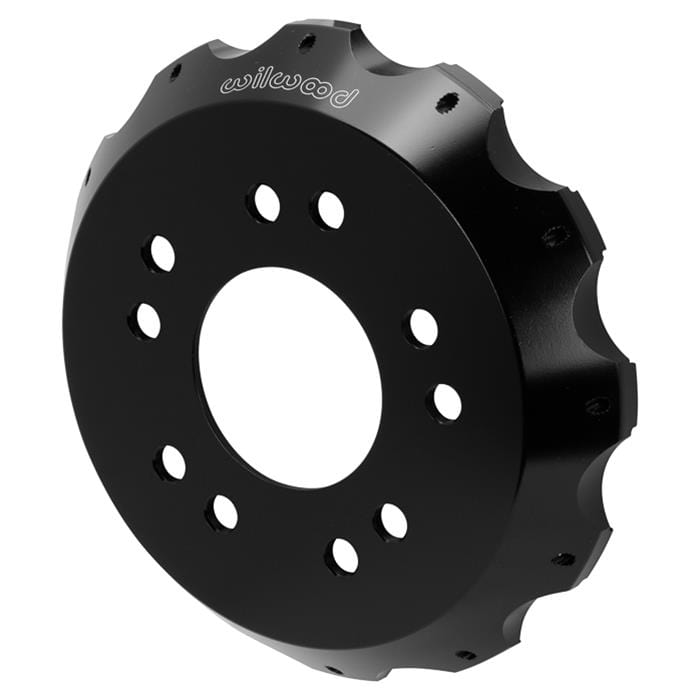

Wilwood Big Brake Dynamic Flared Bell Hats 170-16544
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 170-16544
Part Type: Brake Rotor Hats
Product Line: Wilwood Big Brake Dynamic Flared Bell Hats
Automotive Fittings Part Number: WIL-170-16544
Brake Rotor Hat Type: 1/4-20 in. threaded hole
Brake Rotor Hat Material: Aluminum
Brake Rotor Hat Color: Black
Brake Rotor Hat Bolt Circle: 12 x 8.75 in.
Brake Rotor Hat Offset (in.): 1.23
Brake Rotor Hat Stud Hole Diameter (in.): 0.52
Brake Rotor Hat Center Hole I.D. (in.): 3.06
Brake Rotor Hat Face Thickness (in.): 0.25
Quantity: Sold individually.
Notes: For use with Wilwood Prospindles.
Description:
Wilwood Big Brake Dynamic flared bell hats are precision-machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature dynamic mount T-nut mount holes for use with standard through-hole mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, Big Brake Dynamic hats provide solid, reliable performance in the most demanding conditions. Short offset hats are for narrow space applications and maximize clearance. They're available for most rotor bolt patterns in a variety of 4- and 5-lug wheel patterns.
