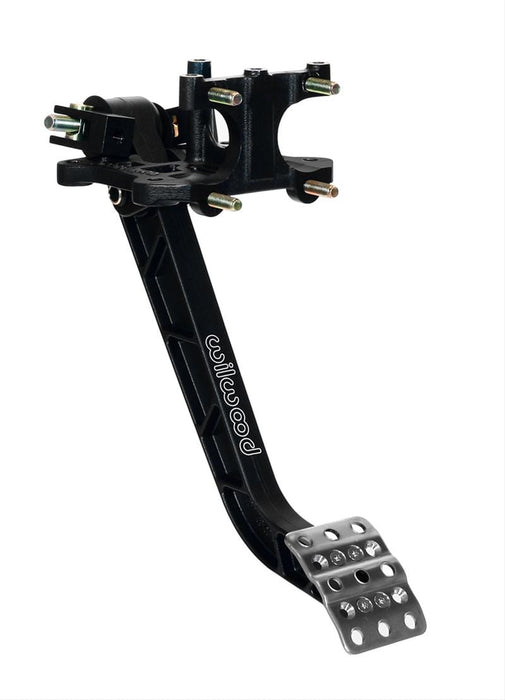

Wilwood Brake Pedal Assemblies 340-12509
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 340-12509
Part Type: Pedal Assemblies
Product Line: Wilwood Brake Pedal Assemblies
Automotive Fittings Part Number: WIL-340-12509
UPC: 889545028454
Pedal Type: Brake
Pedal Mounting Location: Reverse mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black
Gas Pedal Shape: Rectangle
Brake Pedal Shape: Rectangle
Pedal Ratio: 6.25:1
Balance Bar Included: Yes
Master Cylinder Style: Dual
Quantity: Sold individually.
Notes: Adjustable reverse mount pedal assembly mounts two brake master cylinders with a bias balance bar and positions the master cylinders inside the firewall and away from engine heat.
Description:
Wilwood floor mount brake pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation. These pedal assemblies accept any Wilwood vertical-mount flange, single outlet master cylinder (not included; ordered separately by style and bore size).
