Wilwood Brake Proportioning Valves 260-13190

Brake Proportioning Valve, Knob Adjustable,100 - 1,000 psi, Aluminum, Black, 3/8-24 in. Inverted Flare Female Threads, Kit
SKU WIL-260-13190
Manufacturer's SKU: 260-13190
by Wilwood Disc Brakes
Special Order
$294.48 +GST - $294.48 +GST
$294.48 +GST
$294.48 +GST
$294.48 +GST - $294.48 +GST
$294.48 +GST
$338.652 Including GST (NZ Customers only)

Estimated Ship Date: Today

SPECIAL ORDER ITEM

This is a special order item. When you complete your order, we will order it from the supplier.

FREIGHT INFORMATION

Pricing does not include additional freight charge.
Request a quote below.

Click here to request a shipping quote
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-13190
Part Type: Brake Proportioning Valves and Distribution Blocks
Product Line: Wilwood Brake Proportioning Valves
Automotive Fittings Part Number: WIL-260-13190
UPC: 889545067163
Adjustment Style: Knob
Inlet Quantity: 2
Inlet Attachment: Female threads
Brake Line Inlet Size: 3/8 in.-24 inverted flare
Outlet Quantity: 3
Outlet Attachment: Female threads
Brake Line Outlet Size: 3/8 in.-24 inverted flare
Connector For Warning Light: Yes
Minimum Pressure (psi): 100 psi
Maximum Pressure (psi): 1,000 psi
Pressure Reduction (%): 57 percent
Proportioning Valve Finish: Black anodized
Proportioning Valve Material: Aluminum
Remanufactured: No
Quantity: Sold as a kit.

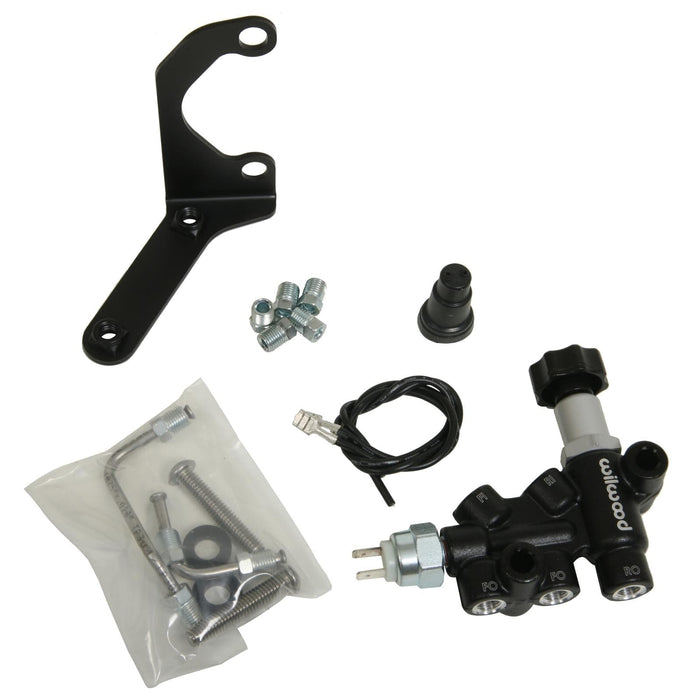

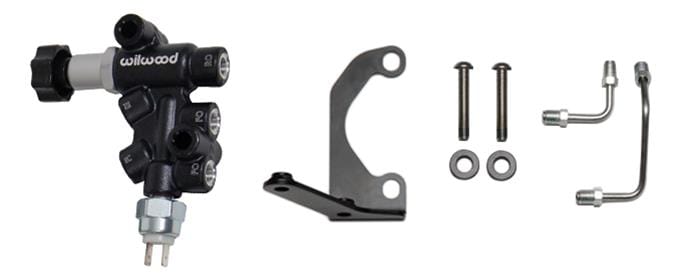

Notes: Kit includes mounting bracket for left hand side, two pre-formed brake lines from the master cylinder to the proportioning valve and mounting hardware. Designed to be used with master cylinders 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375.
Description:
Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations.
