Wilwood DPC56 Rear Brake Kits 140-15176-DR
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-15176-DR
Part Type: Disc Brake Kits
Product Line: Wilwood DPC56 Rear Brake Kits
Automotive Fittings Part Number: WIL-140-15176-DR
UPC: 889545075137
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.00 in./304.80mm
Rear Rotor Thickness (in.): 1.03
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No

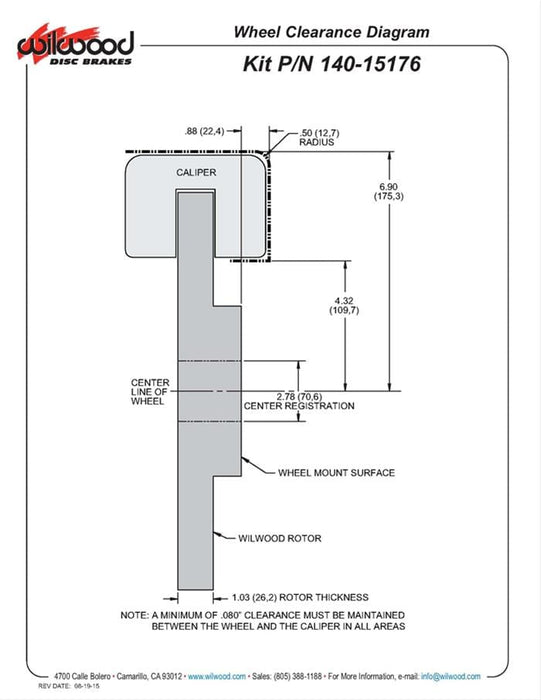

Minimum Recommended Wheel Diameter (in.): 17 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Spacers may be required on some aftermarket wheel applications.
Description:

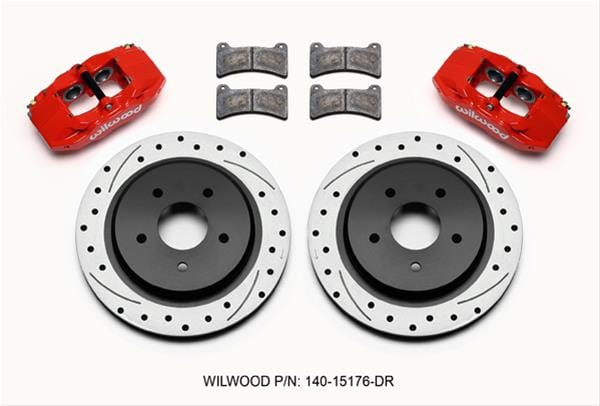

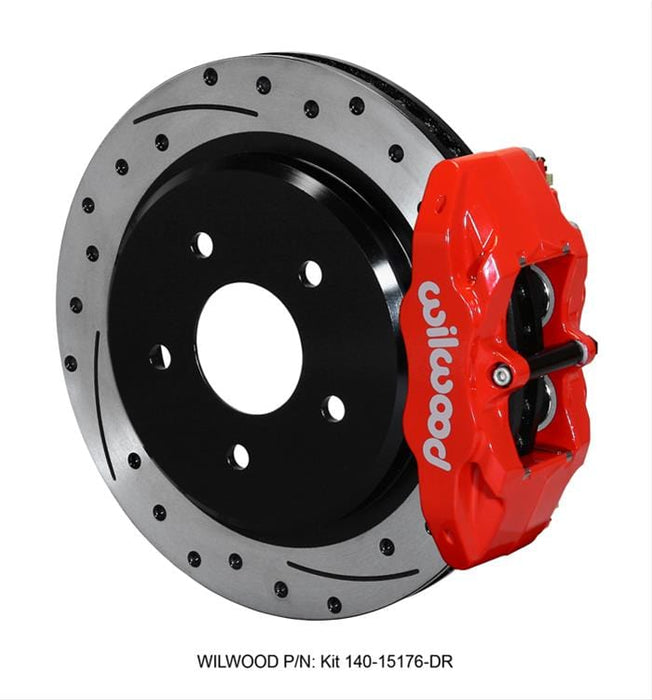

Wilwood DPC56 rear brake kits combine high-tech styling and superior performance. They're engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These rear caliper, pad, and rotor kits feature DPC56 calipers, 12 in. diameter SRP Series drilled and slotted E-coat rotors, and Smart Pads. The positive response, long wear, high fade resistance, and easy-clean properties of the BP-10 compound pads increase your stopping power. These kits bolt directly to most rear spindles without the need for additional brackets or adapters—plus, you have your choice of black or red powdercoated calipers.
