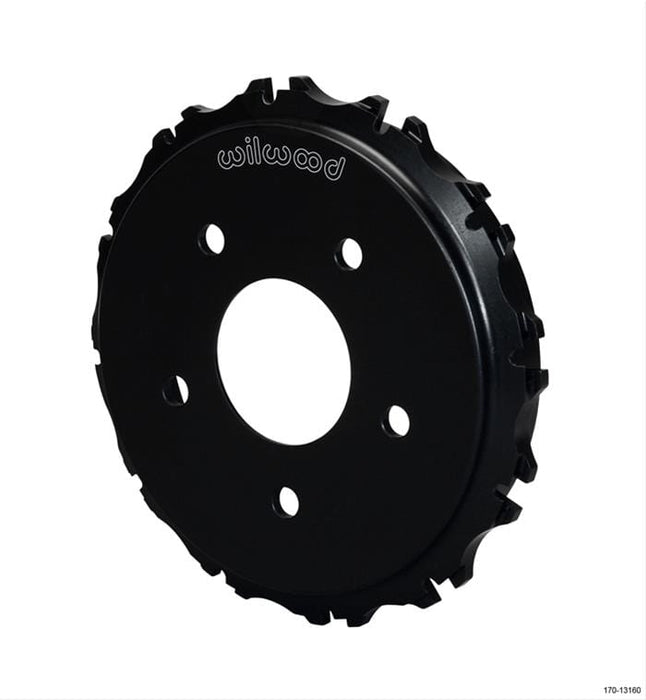

Wilwood Dynamic Bobbin Mount Hats 170-13160
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 170-13160
Part Type: Brake Rotor Hats
Product Line: Wilwood Dynamic Bobbin Mount Hats
Automotive Fittings Part Number: WIL-170-13160
UPC: 889545042146
Brake Rotor Hat Type: Bobbin
Brake Rotor Hat Material: Aluminum
Brake Rotor Hat Color: Black
Brake Rotor Hat Bolt Circle: 12 x 8.75 in.
Brake Rotor Hat Offset (in.): 0.66
Brake Rotor Hat Stud Hole Diameter (in.): 0.52
Brake Rotor Hat Center Hole I.D. (in.): 2.78
Brake Rotor Hat Face Thickness (in.): 0.25
Brake Rotor Hat Clearance I.D. (in.): 7.10
Quantity: Sold individually.
Description:
Wilwood dynamic bobbin mount hats eliminate the problems associated with thermal distortion. They incorporate a rotor mounting system that allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points so the rotors stay flatter and run truer. Also, the brake response and pedal feel remain consistent, and pad knock back, and rotor drag are eliminated. With Wilwood dynamic bobbin mounts, parking brake hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors.
