WILWOOD Also Includes Tube Nut Adapters for Installation of 3/8" Tubing Lever Style Proportioning Valve with 1/8-27 NPT Inlets WB260-8420 Autofit

Lever Style Proportioning Valve with 1/8-27 NPT Inlets WB260-8420

WB260-8420 - PROPORTIONING VALVE COMPACT
SKU WB260-8420
by WILWOOD
Save 16% Save 16%
$213.30 +GST
$213.30 +GST - $213.30 +GST
$213.30 +GST
$178.23 +GST
$178.23 +GST - $178.23 +GST
$178.23 +GST
$204.9645 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped

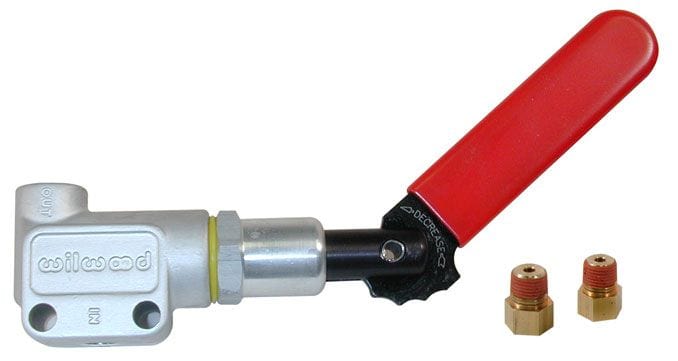

Lever Style Proportioning Valve with 1/8-27 NPT Inlets

Also Includes Tube Nut Adapters for Installation of 3/8" Tubing

WB260-8420

260-8420

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six pre-set points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever "clicks" into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25" side mounting holes spaced 1.00" apart. Inlet / outlet ports are 1/8-27 NPT.
