Wilwood Master Cylinders and Tandem Mount Balance Bar Kits S0001
Master Cylinder, Tandem Balance Bar Mount, Aluminum, Natural, 0.875 in. Bore, Kit
SKU WIL-S0001
Manufacturer's SKU: S0001
Special Order
Original price
$764.49 +GST
-
Original price
$764.49 +GST
Original price
$764.49 +GST
$764.49 +GST
$764.49 +GST
-
$764.49 +GST
Current price
$764.49 +GST
$879.1635 Including GST (NZ Customers only)
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: S0001
Part Type: Master Cylinders
Product Line: Wilwood Master Cylinders and Tandem Mount Balance Bar Kits
Automotive Fittings Part Number: WIL-S0001
Master Cylinder Usage: Brake
Master Cylinder Bore Size: 0.875 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 1/8 in. NPT
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.430 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold as a kit.

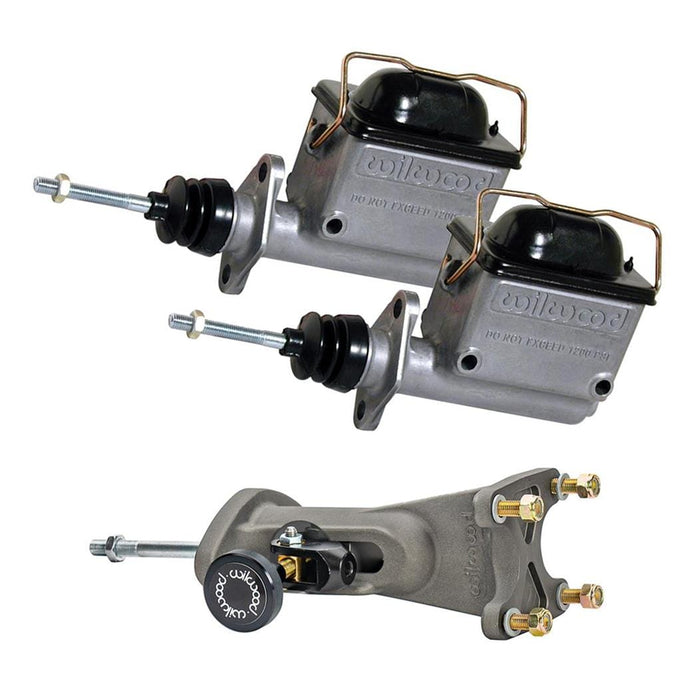

Notes: Includes tandem mount balance bar assembly with threaded pushrod and two master cylinders. Designed with oval mounting holes for 3.22 in. to 3.40 in. on-center studs. Mounts dual master cylinders with 2.25 in. on-center vertical bolt holes.
Description:
For the ultimate control on the street or track, dual master cylinders with an adjustable balance bar allow brake bias to be fine-tuned to conditions and driver preference. Wilwood provides you with the ability to have that ultimate control with their master cylinders and tandem mount balance bar kits.

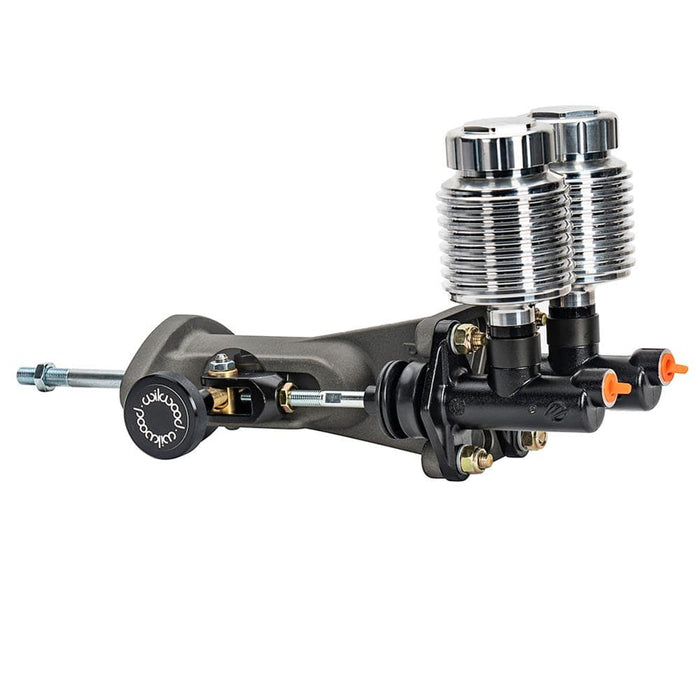

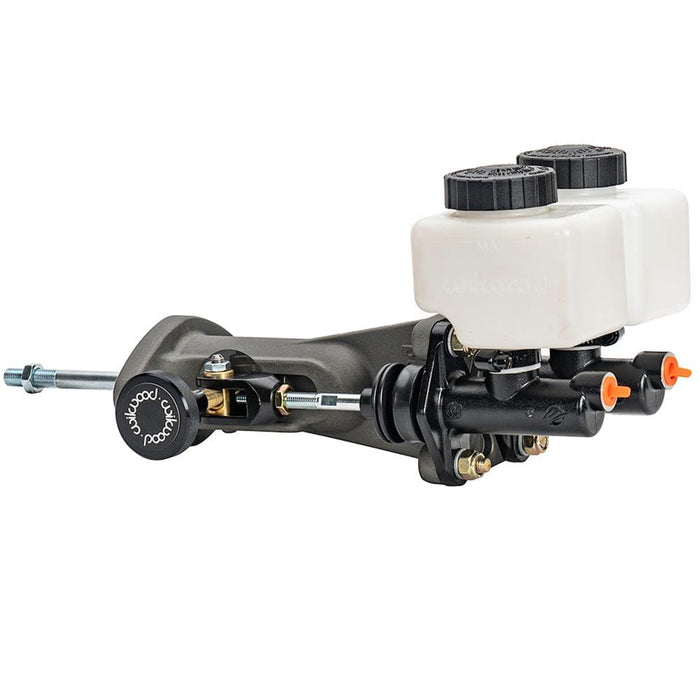

The kits feature a tandem mount balance bar assembly offered with or without eyelet and paired with either two high-volume, aluminum master cylinders or two compact, remote flange master cylinders for those with limited space applications but requiring the output capacity of a full-size master cylinder.

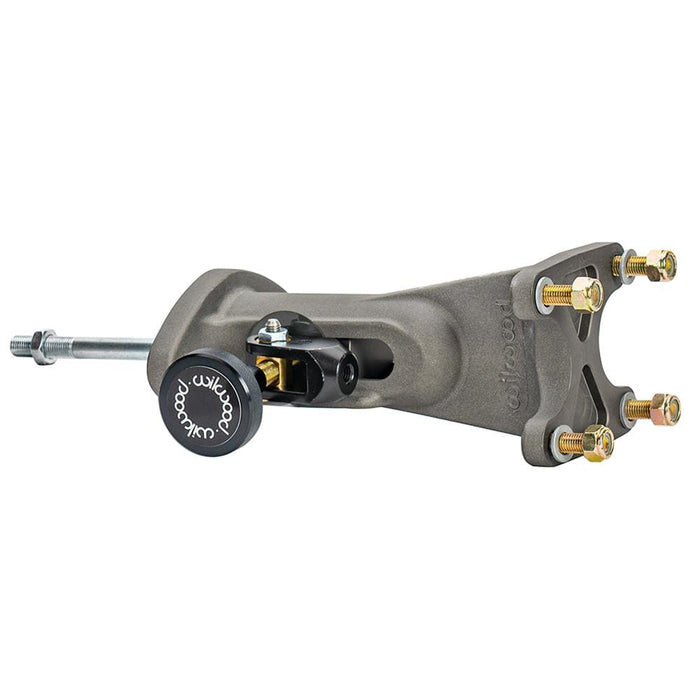

The tandem mount balance bar assembly (with or without eyelet) give modified street cars and trucks the precision-control usually reserved for race vehicles. Each one is a lightweight, forged billet aluminum assembly that bolts to the firewall, replacing the tandem master cylinder with a balance bar and sturdy dual master cylinder mounts for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed. You can easily adjust brake bias with the included knob and the bar assembly is designed with oval mounting holes for 3.22 in. to 3.40 in. on-center studs for a wide variety of vehicle fitments.

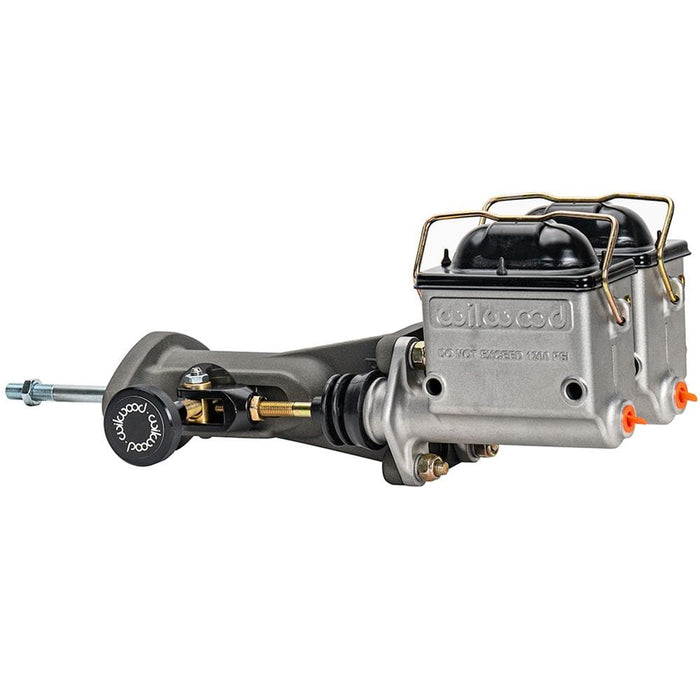

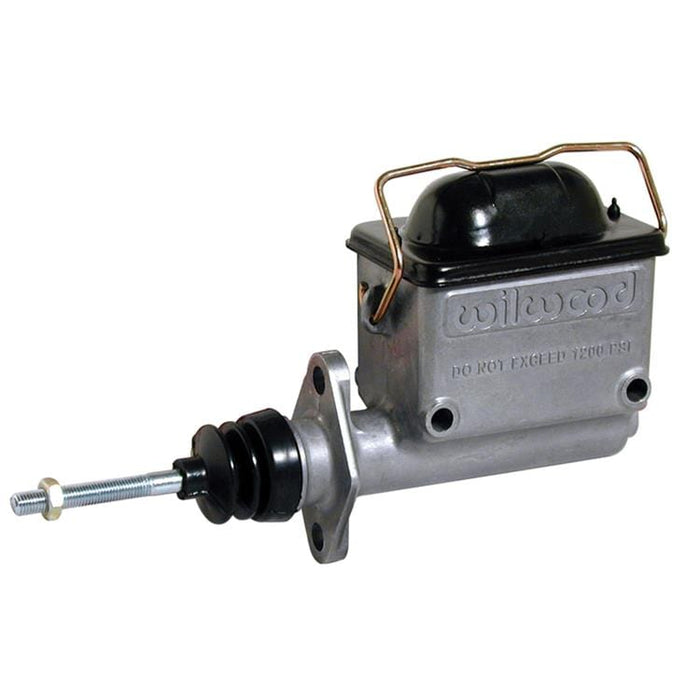

Wilwood's high-volume aluminum master cylinders feature high-pressure, diecast bodies with the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 oz., there is at least 26 percent more fluid volume than other brands, and more fluid volume means cooler temperatures and additional insurance for extreme conditions where high pad wear can compromise fluid levels during long events. The 1 7/16 in. piston travel offers plenty of margin when used with large 4- or 6-piston calipers and the heavy-duty internal springs provide fast retraction. Formed steel lids with bellows-type gaskets keep the moisture out.
Wilwood's compact remote flange master cylinders have ultra-short 3.37 in. black e-coated aluminum bodies to provide 2.16 in. of additional clearance between the mounting flange and the fluid outlet. A full 1.12 in. of piston stroke meets or exceeds the stroke capacity of most full size cylinders, and with a 1/8 in. NPT fluid outlet port located at the top radius of the cylinder bore, the chance for trapped air is reduced. An enhanced fluid inlet port allows mounting of the standard reservoir included and also contains 11/16 in.-20 internal threads for custom reservoir arrangements.
Manufacturer's Part Number: S0001
Part Type: Master Cylinders
Product Line: Wilwood Master Cylinders and Tandem Mount Balance Bar Kits
Automotive Fittings Part Number: WIL-S0001
Master Cylinder Usage: Brake
Master Cylinder Bore Size: 0.875 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 1/8 in. NPT
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.430 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: Includes tandem mount balance bar assembly with threaded pushrod and two master cylinders. Designed with oval mounting holes for 3.22 in. to 3.40 in. on-center studs. Mounts dual master cylinders with 2.25 in. on-center vertical bolt holes.
Description:
For the ultimate control on the street or track, dual master cylinders with an adjustable balance bar allow brake bias to be fine-tuned to conditions and driver preference. Wilwood provides you with the ability to have that ultimate control with their master cylinders and tandem mount balance bar kits.
The kits feature a tandem mount balance bar assembly offered with or without eyelet and paired with either two high-volume, aluminum master cylinders or two compact, remote flange master cylinders for those with limited space applications but requiring the output capacity of a full-size master cylinder.
The tandem mount balance bar assembly (with or without eyelet) give modified street cars and trucks the precision-control usually reserved for race vehicles. Each one is a lightweight, forged billet aluminum assembly that bolts to the firewall, replacing the tandem master cylinder with a balance bar and sturdy dual master cylinder mounts for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed. You can easily adjust brake bias with the included knob and the bar assembly is designed with oval mounting holes for 3.22 in. to 3.40 in. on-center studs for a wide variety of vehicle fitments.
Wilwood's high-volume aluminum master cylinders feature high-pressure, diecast bodies with the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 oz., there is at least 26 percent more fluid volume than other brands, and more fluid volume means cooler temperatures and additional insurance for extreme conditions where high pad wear can compromise fluid levels during long events. The 1 7/16 in. piston travel offers plenty of margin when used with large 4- or 6-piston calipers and the heavy-duty internal springs provide fast retraction. Formed steel lids with bellows-type gaskets keep the moisture out.
Wilwood's compact remote flange master cylinders have ultra-short 3.37 in. black e-coated aluminum bodies to provide 2.16 in. of additional clearance between the mounting flange and the fluid outlet. A full 1.12 in. of piston stroke meets or exceeds the stroke capacity of most full size cylinders, and with a 1/8 in. NPT fluid outlet port located at the top radius of the cylinder bore, the chance for trapped air is reduced. An enhanced fluid inlet port allows mounting of the standard reservoir included and also contains 11/16 in.-20 internal threads for custom reservoir arrangements.
