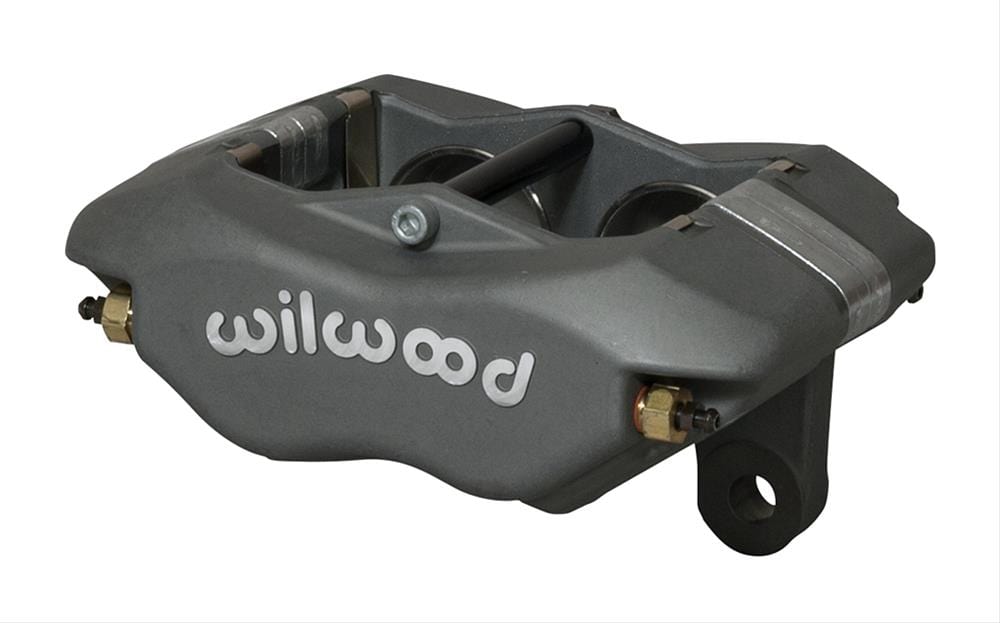

Wilwood Narrow-Mount Dynalite Brake Calipers 120-11572
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 120-11572
Part Type: Brake Calipers
Product Line: Wilwood Narrow-Mount Dynalite Brake Calipers
Automotive Fittings Part Number: WIL-120-11572
UPC: 889545001525
Caliper Series: Dynalite
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.750
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Wilwood narrow-mount Dynalite brake calipers, or NDL's, feature an FEA-generated radial transition design that eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. This design substantially increases resistance to deflection and caliper separation under severe loads. These narrow-mount Dynalite brake calipers are equipped with Wilwood's SRS stainless steel bridge wear plates, which are designed to eliminate bridge wear caused by pad gouging and extend the service life of the caliper. Internal fluid passages get rid of the need for external tubes. Four-corner bleed screws ensure simple and effective air evacuation from the system. Their high-luster Type III Mil-Spec hard anodized finish, stainless steel pistons, and high-temperature seals make Wilwood narrow-mount Dynalite brake calipers the perfect choice for your late model, modified, Sprint, off-road, or road-racing vehicle. Order the model designed for your vehicle's application.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
