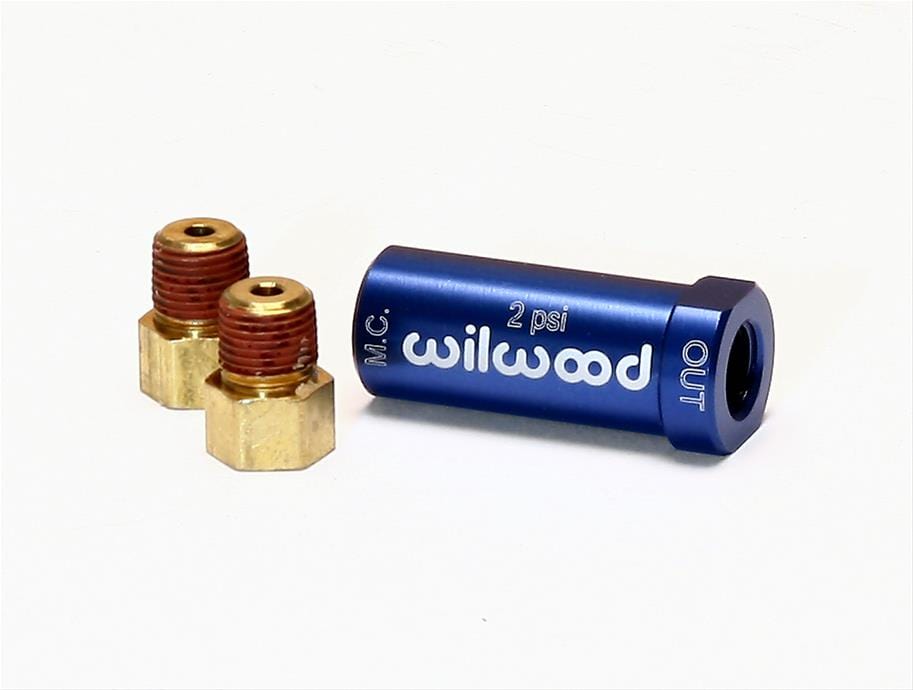

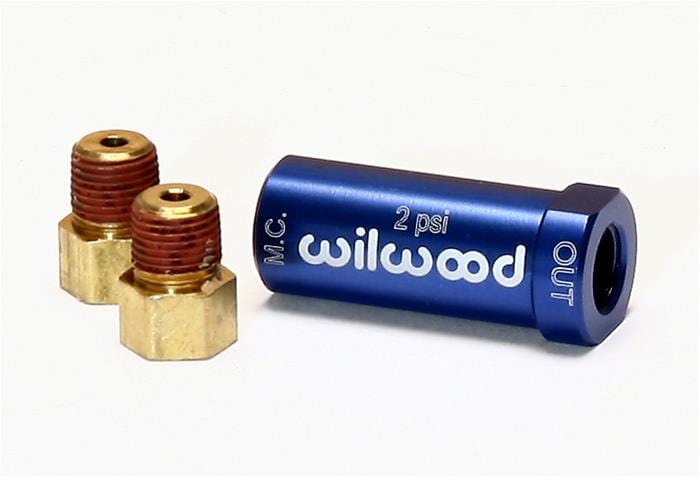

Wilwood Residual Pressure Valves 260-13783
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 260-13783
Part Type: Residual Pressure Valves
Product Line: Wilwood Residual Pressure Valves
Automotive Fittings Part Number: WIL-260-13783
UPC: 889545074789
Brake Line Pressure Retained (psi): 2 psi
Residual Valve Finish: Blue anodized
Fitting Attachment 1: Female threads
Fitting Size 1: 1/8 in. NPT
Fitting Attachment 2: Female threads
Fitting Size 2: 1/8 in. NPT
Adapters Included: Yes
Quantity: Sold individually.
Notes: Supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will most domestic 3/16th hard brake lines.
Description:
Ideal for drag racing, street rods, and many off-road applications, inline residual pressure valves from Wilwood retain a minimum brake line pressure to help eliminate excessive pedal travel. These 2 lb. valves are used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers--in other words, where fluid drainback occurs, causing excessive brake drag. With drum brakes, 10 lb. valves are used to compensate for return spring tension in the drums. Wilwood residual pressure valves are made from billet aluminum and color-coded for easy identification.
