Wilwood Superlite 4R Rear Big Brake Kits 140-9216-DR
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 140-9216-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Superlite 4R Rear Big Brake Kits
Automotive Fittings Part Number: WIL-140-9216-DR
UPC: 889545030945
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Axle Housing Flange Style: Small Ford (3.336 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No

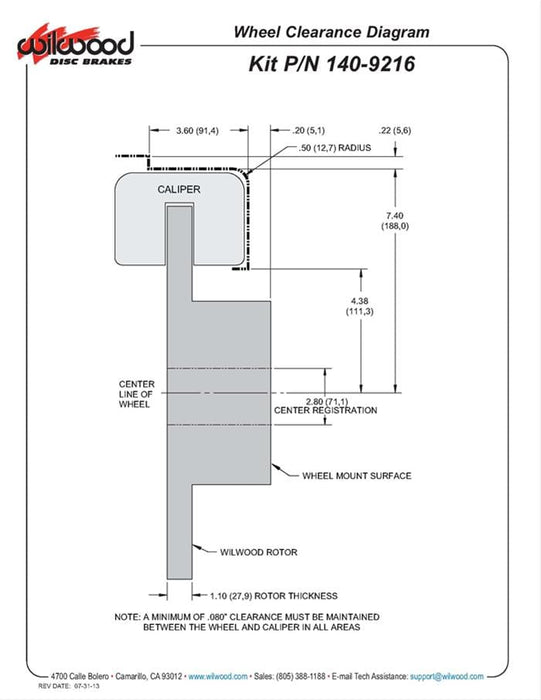

Minimum Recommended Wheel Diameter (in.): 17 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits small Ford rear ends with an 2.66 in. axle offset.
Description:

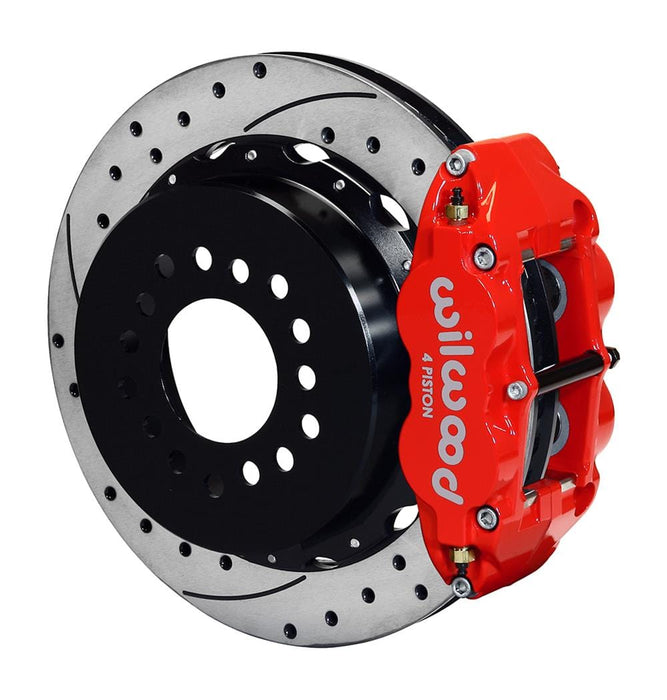

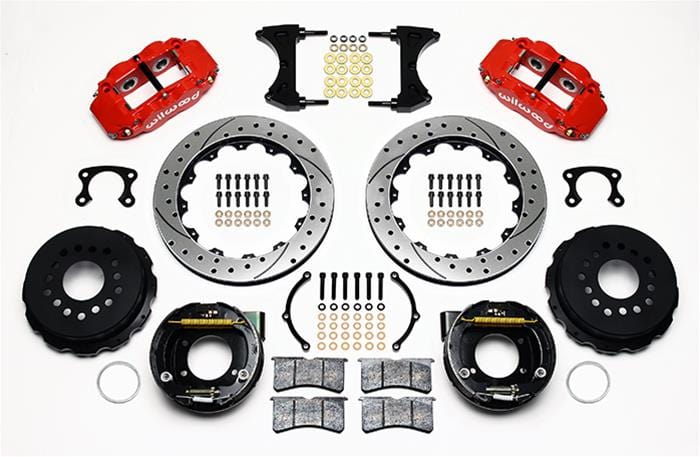

Having a big engine and a trick suspension is really nice, but being able to stop it all quickly is much more important. Wilwood's Superlite 4R Rear Big Brake disc brake kits are engineered to get that job done on race cars, customs, show cars, and lots of other vehicles. For maximum stopping power, they feature Wilwood's billet Superlite 4-piston calipers, teamed up with PolyMatrix pads and zinc plated 13 in. directional, slotted, internally vaned hat-style rotors that are compatible with existing ABS components. In addition, the parking brake is done via an "internal shoe" setup inside of the rotor hat. The kits include all brackets, seals, bearings, and mounting hardware needed to make each application a bolt-on proposition.
