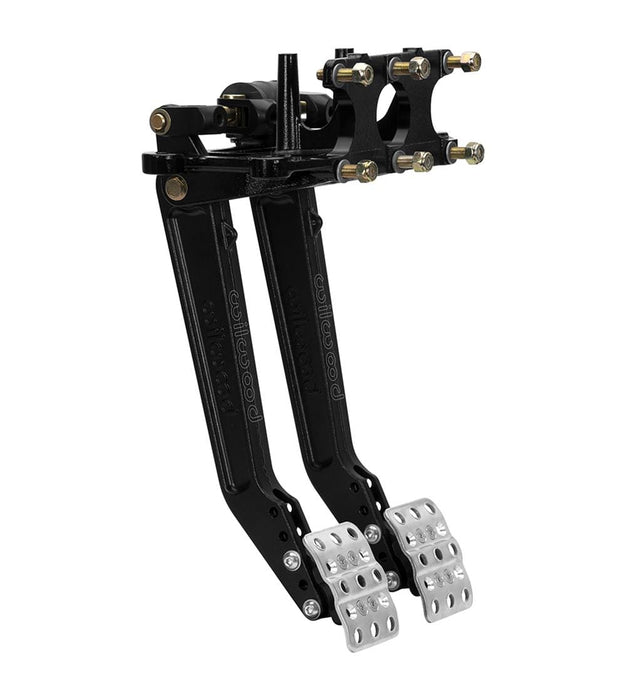

Wilwood Swing Mount Pedal Assemblies 340-16385
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 340-16385
Part Type: Pedal Assemblies
Product Line: Wilwood Swing Mount Pedal Assemblies
Automotive Fittings Part Number: WIL-340-16385
Pedal Type: Brake/Clutch
Pedal Mounting Location: Reverse mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Natural
Pedal Color: Black
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.5:1 to 6.25:1
Balance Bar Included: No
Quantity: Sold individually.
Description:
Wilwood offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal including swing mount pedal assemblies. These pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation through the entire range of travel. These assemblies are designed to accept any Wilwood vertical-mount flange, single outlet master cylinder (not included—ordered separately by style and bore size). Select the swing mount pedal assembly for your application needs.
