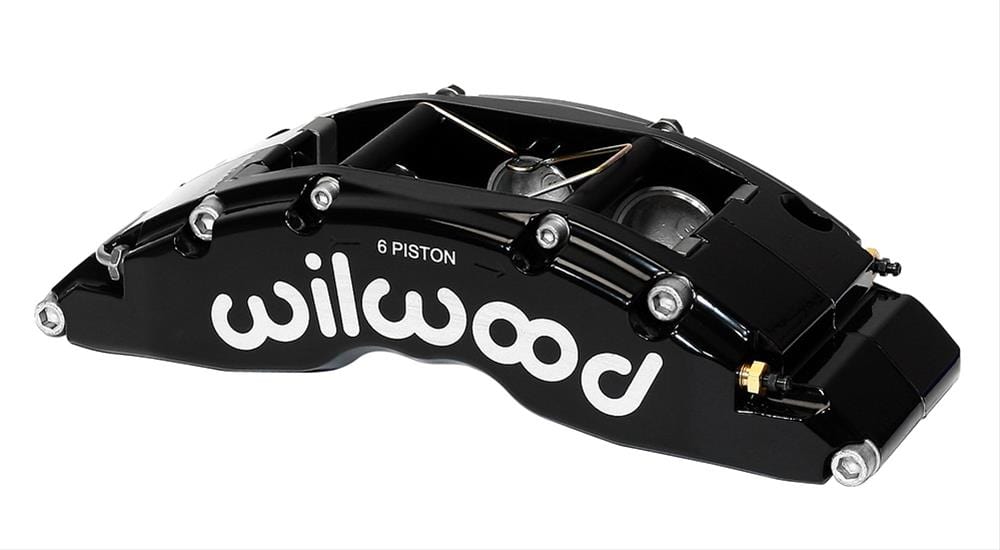

Wilwood TC6R Radial Mount Brake Calipers 120-14319-FS
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 120-14319-FS
Part Type: Brake Calipers
Product Line: Wilwood TC6R Radial Mount Brake Calipers
Automotive Fittings Part Number: WIL-120-14319-FS
UPC: 889545079067
Caliper Series: TC6R Radial Mount
Caliper Piston Quantity: Six
Piston Diameter (in.): 1.880/1.620/1.620
Rotor Thickness (in.): 1.380 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Wilwood TC 6R Radial Mount calipers represent a generation of refinement in big brake technology. Six stainless steel pistons captured within a massive high-strength forged aluminum body generate the stopping power and durability to handle the heavy loads of custom late model trucks and sport utility vehicles.
TC 6R calipers are forged from premium-grade, billet aluminum alloy blanks. FEA (finite element analysis) technology was employed to develop a design that minimizes weight and maximizes rigidity. These calipers generate unmatched pad clamping efficiency through six thick-walled, stainless steel pistons that resist corrosion and reduce the heat transferred from the pads into the caliper body, seals, and fluid.
Key features of Wilwood TC 6R Radial Mount calipers include:
* Accommodates 1.38 in. thick rotors up to 16 in. in diameter
* Six high-strength, coated, steel alloy cross bridge bolts add strength against deflection and body separation
* Steel insert plates protect the bridges against wear and gouging from the load-bearing edges of the brake pad
* Heavier piston walls add strength
* Differential piston bore design from Wilwood racing calipers
* Clamping pressure is proportionately distributed to provide balanced pad loading with even wear properties
* Piston bore volumes are configured for compatibility with OE master cylinders and boosters
* Rubber-dampened fluid transfer tubes and recessed 2-piece bleed screws
* Bridge-mounted pad-dampening springs reduce vibration, road rattle, and harmonics that cause squeal and other brake noise
* Choice of finishes for high-tech style and a total custom look
