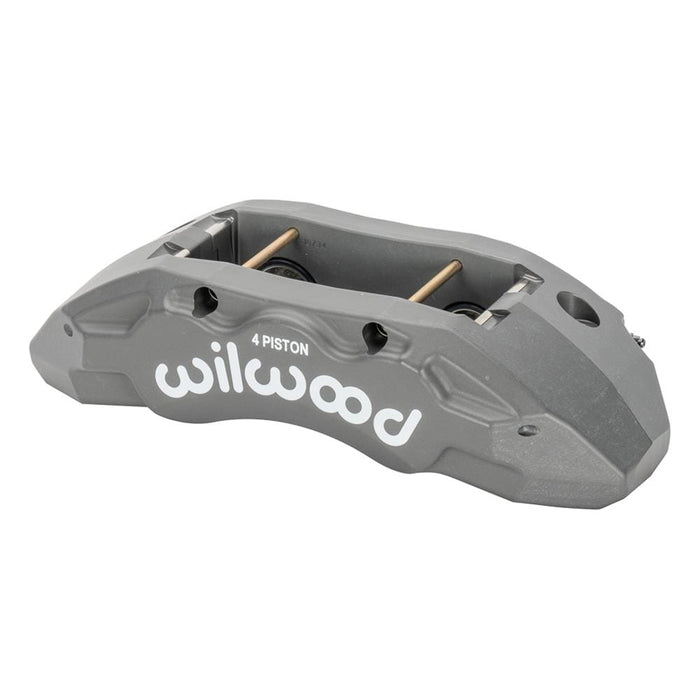

Wilwood TX4R Forged Radial-Mount Calipers 120-16731
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 120-16731
Part Type: Brake Calipers
Product Line: Wilwood TX4R Forged Radial-Mount Calipers
Automotive Fittings Part Number: WIL-120-16731
Caliper Series: TX4R Forged Radial Mount
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620/1.380
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Clearcoat
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female NPT
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Wilwood TX4R forged radial-mount calipers are engineered and purpose-built for severe-duty service on heavy-duty trucks, SUVs, and Class 1, 2, and 3 armored vehicles up to 14,000 lbs. GVWR. Tactical Xtreme 4-piston calipers combine a forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50 in. thick. These features make the TX4Rs the ultimate choice for high-strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme-duty service applications. Wilwood TX4R forged radial-mount calipers have a hard anodized finish on base models with options for gloss black or red powdercoat finishes. Choose the ones you prefer for your application.
