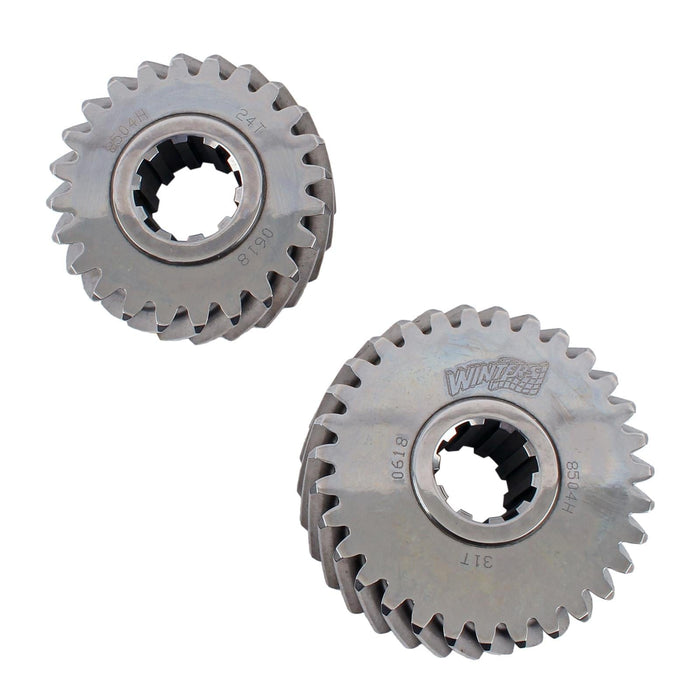

Winters 10-Spline Quick-Change Helical Gears SR8504HR
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: SR8504HR
Part Type: Quick Change Differential Gears
Product Line: Winters 10-Spline Quick-Change Helical Gears
Automotive Fittings Part Number: WPP-SR8504HR
Quick Change Gear Set Spline: 10
Quick Change Gear Set Number: 4
Quick Change Gear Set Number of Teeth: 24/31
Quick Change Gear Spur Ratio: 1.292
Quick Change Gear Material: SAE 8620 Steel
Heat-Treated: Yes
Quantity: Sold as a pair.
Notes: Features 0.774 low spur ratio.
Quick Change Ring and Pinion Ratio: 4.11
Quick Change Gear High Ratio: 5.32
Quick Change Gear Low Ratio: 3.19
Description:
Setting up a rear axle for the best performance is fleeting. Track or street conditions, weather, and noise are all elements that require changes. Winters 10-spline quick-change helical gears are an excellent choice for normal driving at highway speeds due to their reduction in gear noise. Although stronger than straight cut gears, these helical units are not recommended for racing due to the excessive axial loads. Simply install Winters 10-spline quick-change helical gears, keep endplay limited to .010 max, add sufficient oil to the differential, and enjoy a quiet ride till your next trip to the track.
